Valletta City Gate // Renzo Piano Building Workshop

Valletta, Malta

Architizer Editors Architizer Editors
Want to see your project featured like this?

Text description provided by the architects.

The ‘City Gate’ project takes in the complete reorganization of the principal entrance to the Maltese capital of Valletta. The project comprises four parts: the Valletta City Gate and its site immediately outside the city walls, the design for an open-air theatre ‘machine’ within the ruins of the former Royal opera house, the construction of a new Parliament building and the landscaping of the ditch.The gate, the ditch and the city wallsA bridge’s width is usually defined in relation to its length.

© Michel Denancé

© Michel Denancé

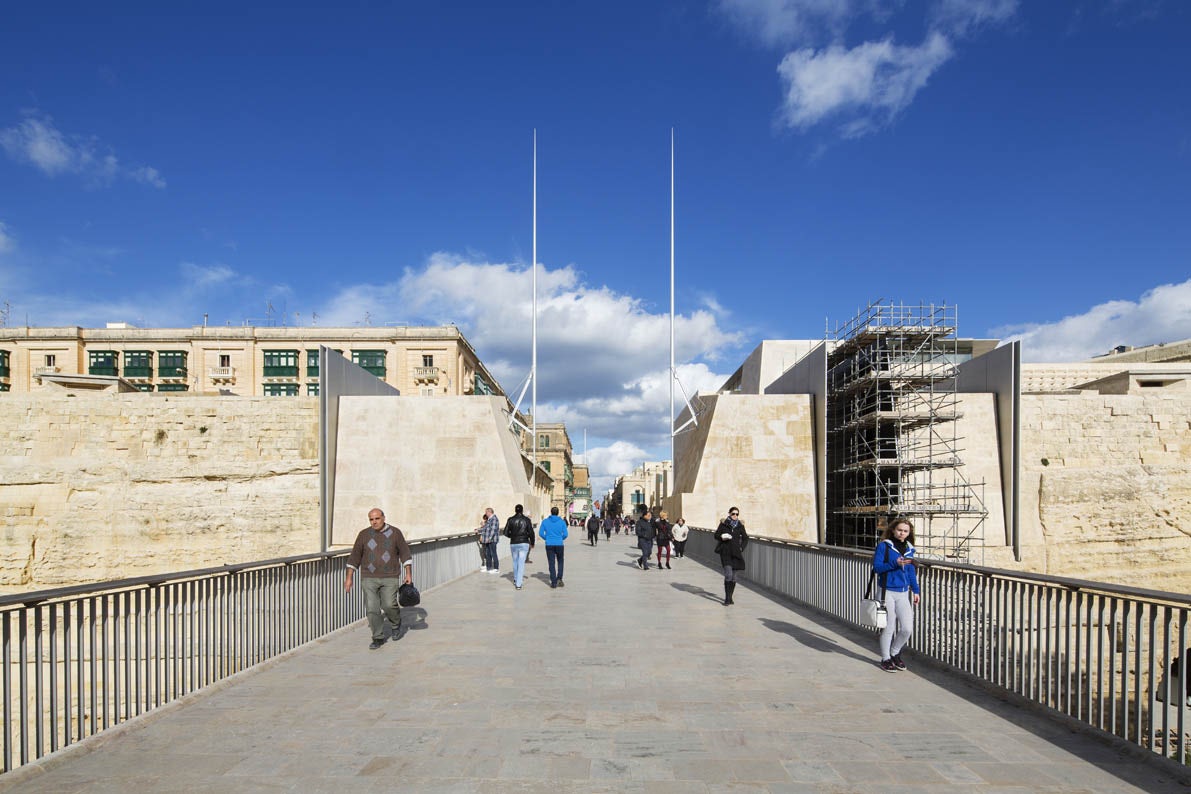

However, the bridge leading across the ditch to the Valletta City Gate had been repeatedly enlarged over time until it had lost both its initial shape and function, becoming more city square than bridge. With the aim of resolving this rather unsatisfactory transformation, the project focuses on returning the bridge to its 1633 ‘Dingli’s Gate’ dimensions, by demolishing later additions.

© Michel Denancé

© Michel Denancé

This allows passers-by to once again have the sensation of crossing a real bridge, and gives them views of the ditch and fortifications.

Valletta’s first city gate, which was probably a single tunnel through the city’s ramparts, has been remodelled through the years, considerably altering the image of a fortified city gate.

© Michel Denancé

© Michel Denancé

The most recent modification, completed 50 years ago, involved demolishing 32m of the city wall, distorting the impact of the entrance into the city.

The first objective of the project was therefore to reinstate the ramparts’ original feeling of depth and strength and to reinforce the narrowness of the entrance to the city, while opening up views of Republic Street.

© Michel Denancé

© Michel Denancé

The new city gate is a ‘breach’ in the wall only 8m wide. The relationship between the original fortifications and those that have been reconstructed is made clear by the insertion of powerful 60mm-thick steel ‘blades’ that slice through the wall between old and new.

The key element of this redevelopment was opening the gate to the sky.

© Michel Denancé

© Michel Denancé

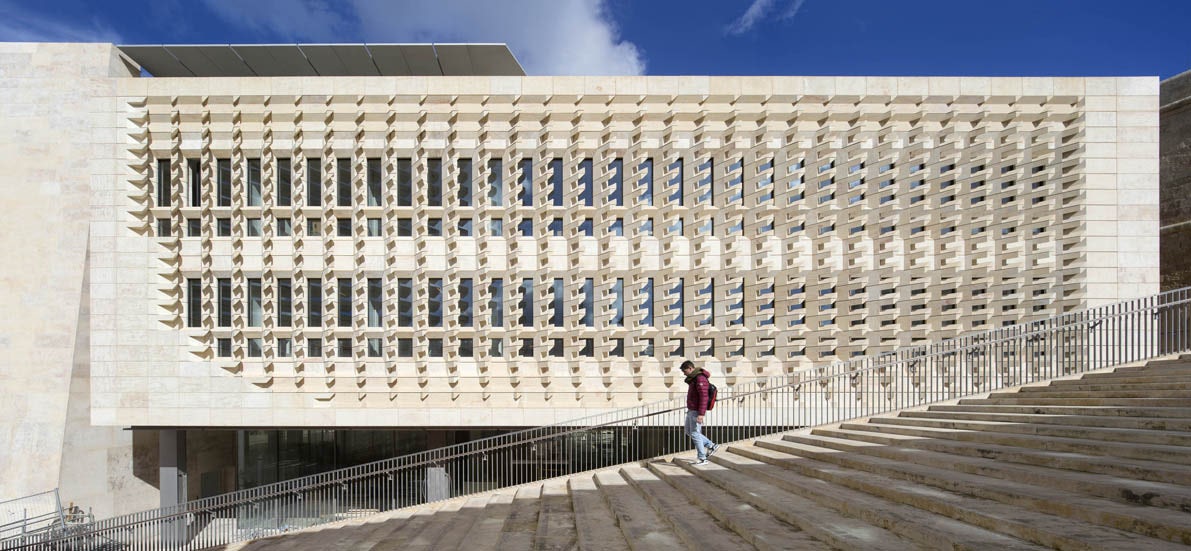

The section of Pope Pius V Street that formerly ran immediately inside the gate at a raised level has been demolished and replaced by two wide, gently sloping flights of steps to each side of the new gate, inspired by the stairs that had framed the gate before the construction of Freedom Square.

© Michel Denancé

© Michel Denancé

These stairs link the bastions of St James’s Cavalier and St John’s Cavalier to the lower level Republic Street. This rearrangement frees the fortifications from the arcade that formerly obscured them, allowing them to be seen to their full height and power.

The gate and the ditch will be linked by a stairway and a lift with panoramic views, allowing visitors to descend to the depths of the ditch, now planted with gardens.

© Michel Denancé

© Michel Denancé

The car park that formerly occupied the ditch has been replaced by lush, refreshing gardens – an ideal place for a stroll or relaxation, a very pleasant new space to explore. Open-air events can also be organized here against the historical backdrop.The architecture of the new city gate is very restrained, giving an impression of strength and austerity, stripped of extraneous decoration that would undermine its timeless, honest quality.

© Michel Denancé

© Michel Denancé

Its tapered shape and the two great steel poles, each 25m high, are enough to lend this breach in the wall the status of the Valletta City Gate. The gateway is made of immense blocks of stone, delimited and framed by the tall steel ‘blades’ that are used to highlight the junction of old and new – steel and stone in a dialogue of nature, strength and history.

© Michel Denancé

© Michel Denancé

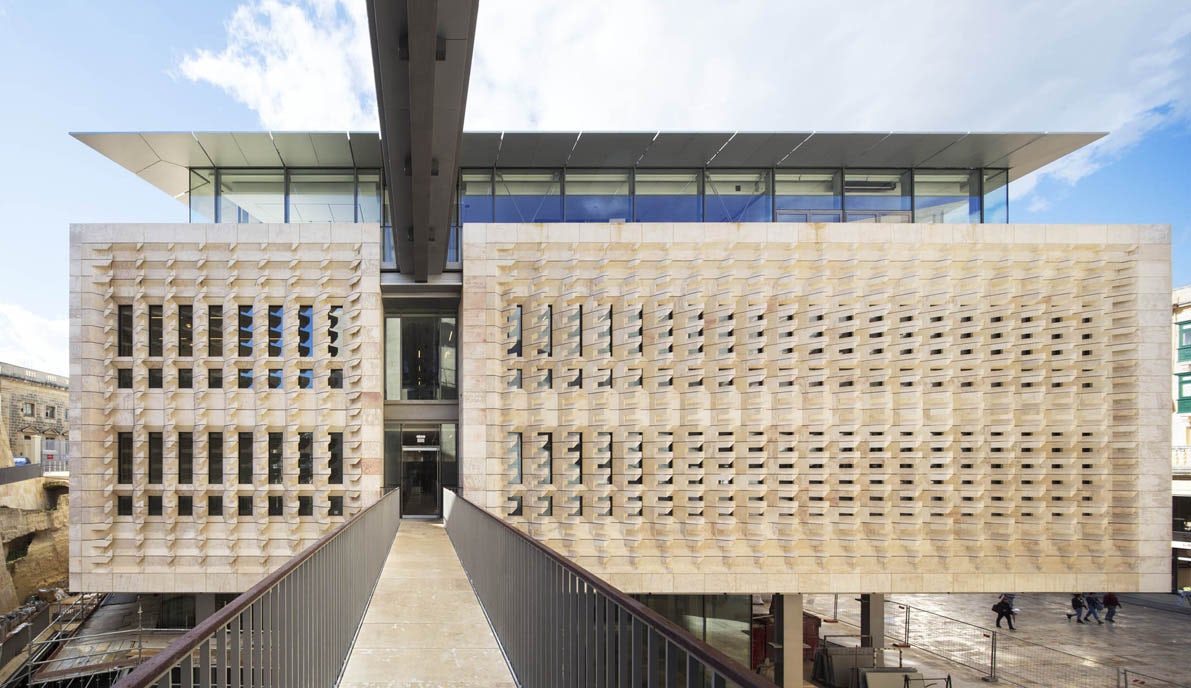

A new ‘hard stone’ quarry on Gozo was opened up specifically to provide stone for this project. The Parliament, an environmentally responsible buildingThe parliament building is made up of two massive blocks in stone that are balanced on slender columns to give the building a sense of lightness, the whole respecting the line of the existing street layout.

© Michel Denancé

© Michel Denancé

The northernmost block is principally given over to the parliament chamber, while the south block accommodates members of parliament’s offices and the offices of the Prime Minister and Leader of the Opposition.

Creating a porous urban block was at the forefront of the building’s volumetric design. The two blocks are separated by a central courtyard, which also serves as the main entrance to the building.

© Michel Denancé

© Michel Denancé

The courtyard is conceived in such a way that views through to St James’s Cavalier from Republic Street are not obscured. The new parliament building is detached from the St James’s Cavalier bastion, highlighting the latter’s structure and historic size as part of the city’s fortifications.The parliament’s facades are finished in solid stone.

© Michel Denancé

© Michel Denancé

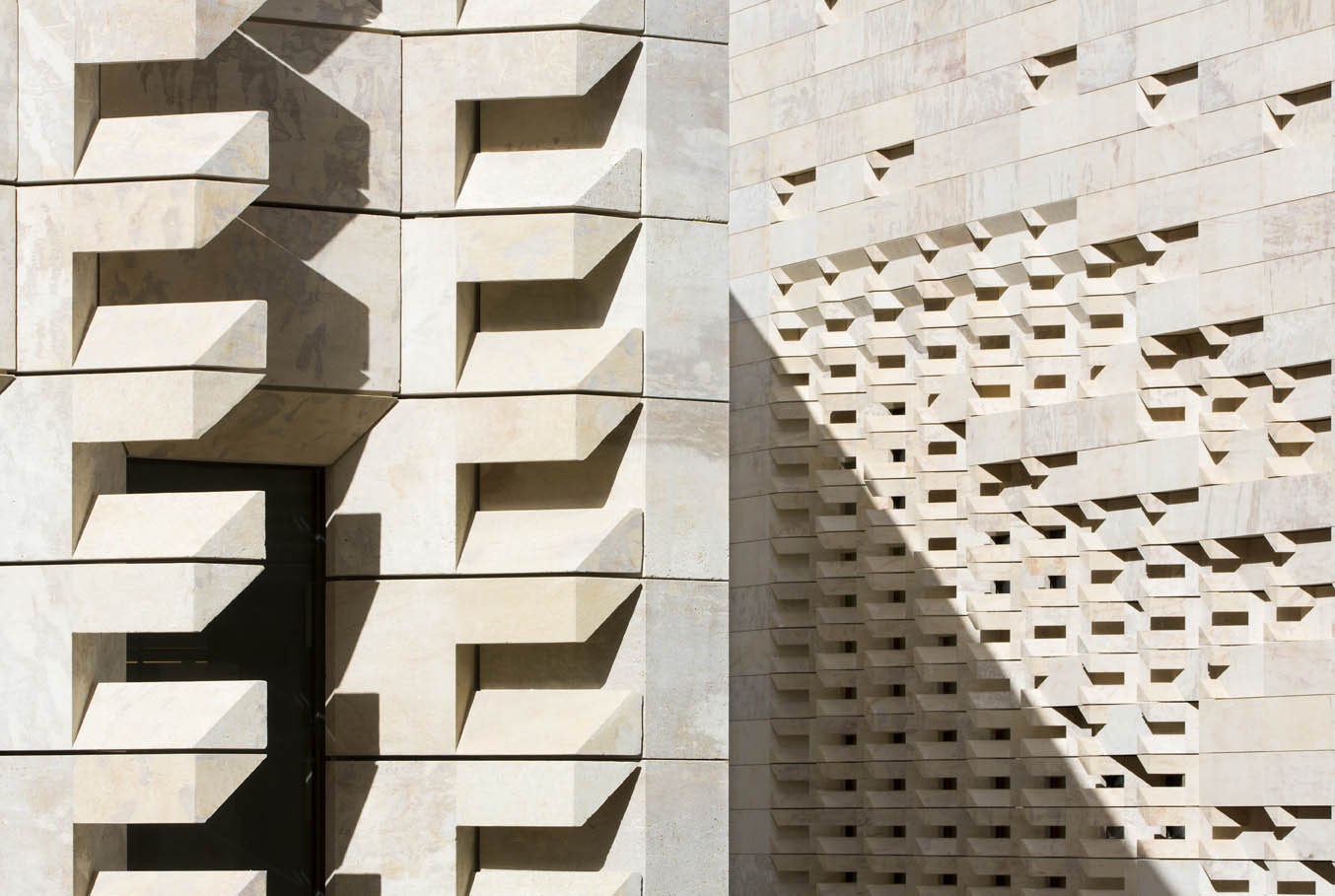

This stone has been sculpted as though eroded by the direction of the sun and the views around it, creating a fully functional device that filters solar radiation while allowing natural daylight inside, all the while maintaining views from the building. Each of these blocks of facade has been sculpted by a numerically controlled machine.

© Mario Carrieri

© Mario Carrieri

The result is a stone architecture that is fitting for its historic context but also the product of cutting-edge technology.

Generally it is the density and dynamism of a building’s ground floor that brings it to life, driving a hive of activity in the rest of the building; this is how the ground floor was conceived here, as a flexible cultural space, fully fitted out with a full range of multimedia services.

© Mario Carrieri

© Mario Carrieri

It is an ideal space for temporary or permanent exhibitions, all fully visible from outside the building, serving as a sort of cultural outpost at the entrance to Valletta.

Certain organizations and parliament-related activities will be housed on the building’s basement level, which opens onto a planted, shaded courtyard. The old Malta railway tunnel is also connected to this lower level garden space, restoring the old underground structure that had been used as a garage, and making it accessible to the public.

© Renzo Piano Building Workshop

© Renzo Piano Building Workshop

Energy use and environmental considerations are principal components in the design of this building. On the one hand, stone is used for the building’s facade to diminish solar heat gain and to allow natural ventilation. Stone is also effective as part of the building’s geothermal heat exchanger, with 40 geothermal boreholes sunk into rock to depths of 140m, 100m below sea-level.

© Michel Denancé

© Michel Denancé

In addition, the roof is covered with 600 sq m of photovoltaic panels – an ambitious energy strategy that allows the building to generate 80% of the energy required to heat it in the winter and 60% of its requirements to cool it in the summer months.The Royal Opera House siteBuilt between 1862 and 1866 by E.M.

© Renzo Piano Building Workshop

© Renzo Piano Building Workshop

Barry, the Royal Opera House was destroyed during the bombardments of 1942. Ever since, its ruins have been treated like archaeological remains; evidence of the site’s history, and fragments of local collective memory. The ruins have now been restored, made secure and integrated into the new project for an open-air theatre.

© Renzo Piano Building Workshop

© Renzo Piano Building Workshop

When events are not being held here, the theatre functions as an open piazza, a public city space, a social space. During the summer, the steel structure placed within the historic remains works like a ‘theatre machine’. Almost 1,000 seats are installed and a theatre takes form for a season of opera, dance, theatre and concerts, a program that requires a variety of theatre configurations that are made possible thanks to the structure’s mechanized stage and theatre wings.

© Renzo Piano Building Workshop

© Renzo Piano Building Workshop

The theatre is also equipped with an ERES acoustic enhancement system that can recreate the reverberations and acoustics of an interior concert hall space – an innovative modern technique for this historic Mediterranean site.Client: Grand Harbour Regeneration CorporationRenzo Piano Building Workshop, architects in collaboration with Architecture Project (Valletta)Design Team: A.Belvedere, B.

Plattner (partners in charge) with D.Franceschin, P.Colonna, P.Pires da Fonte, S.Giorgio-Marrano, N.Baniahmad, A.Boucsein, J.Da Nova, T.Gantner, N.Delevaux, N. Byrelid, R.Tse and B.Alves de Campos, J.LaBoskey, A.Panchasara, A.Thompson; S.Moreau; O. Aubert, C.Colson, Y.Kyrkos (models)Consultants: Arup (acoustics, civil, structural and MEP engineering); Kevin Ramsey (stone consultant), Daniele Abbado (theatre consultant), Franck Franjou (lighting), Studio Giorgetta (landscaping), Silvano Cova (theatre special equipment)..
