Kata Farm // AIX Arkitekter

Varnhem, Sweden

Architizer Editors Architizer Editors
Want to see your project featured like this?

Text description provided by the architects.

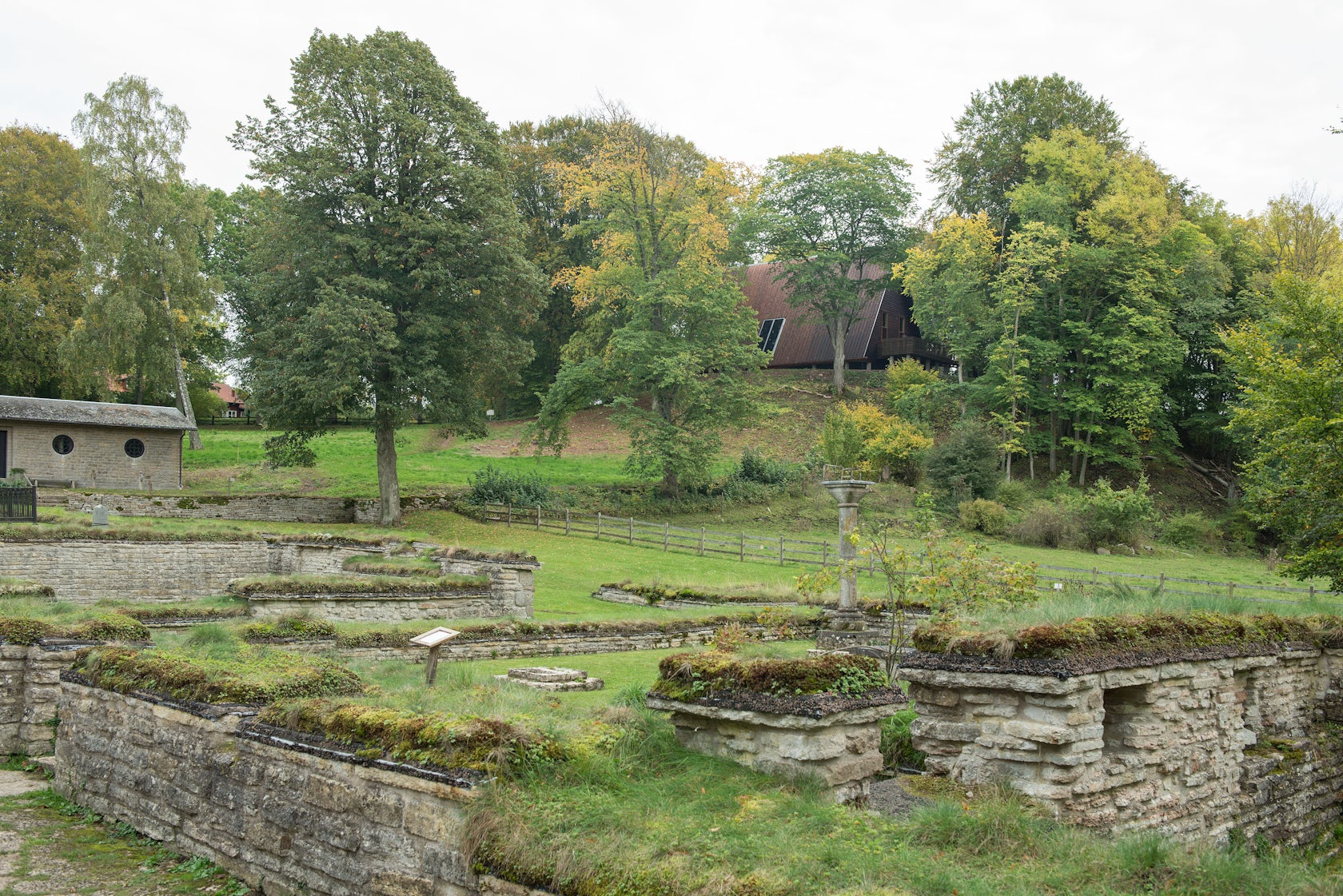

Exhibition hall, Kata Farm in Varnhem, Västergötlands museum.In 2005, excavations were initiated in a hill near Varnhems monastery church. There were found remains of a farm church from the 9th century, which testifies that Västergötland was christened 100 years earlier than was believed. The ruins are the remains of Sweden’s oldest Christian church and probably even the oldest Swedish building.

© AIX Arkitekter

© AIX Arkitekter

© AIX Arkitekter

© AIX Arkitekter

Kata was the woman who ruled the farm and allowed the church to be built, and that is why the place was named Kata farm.

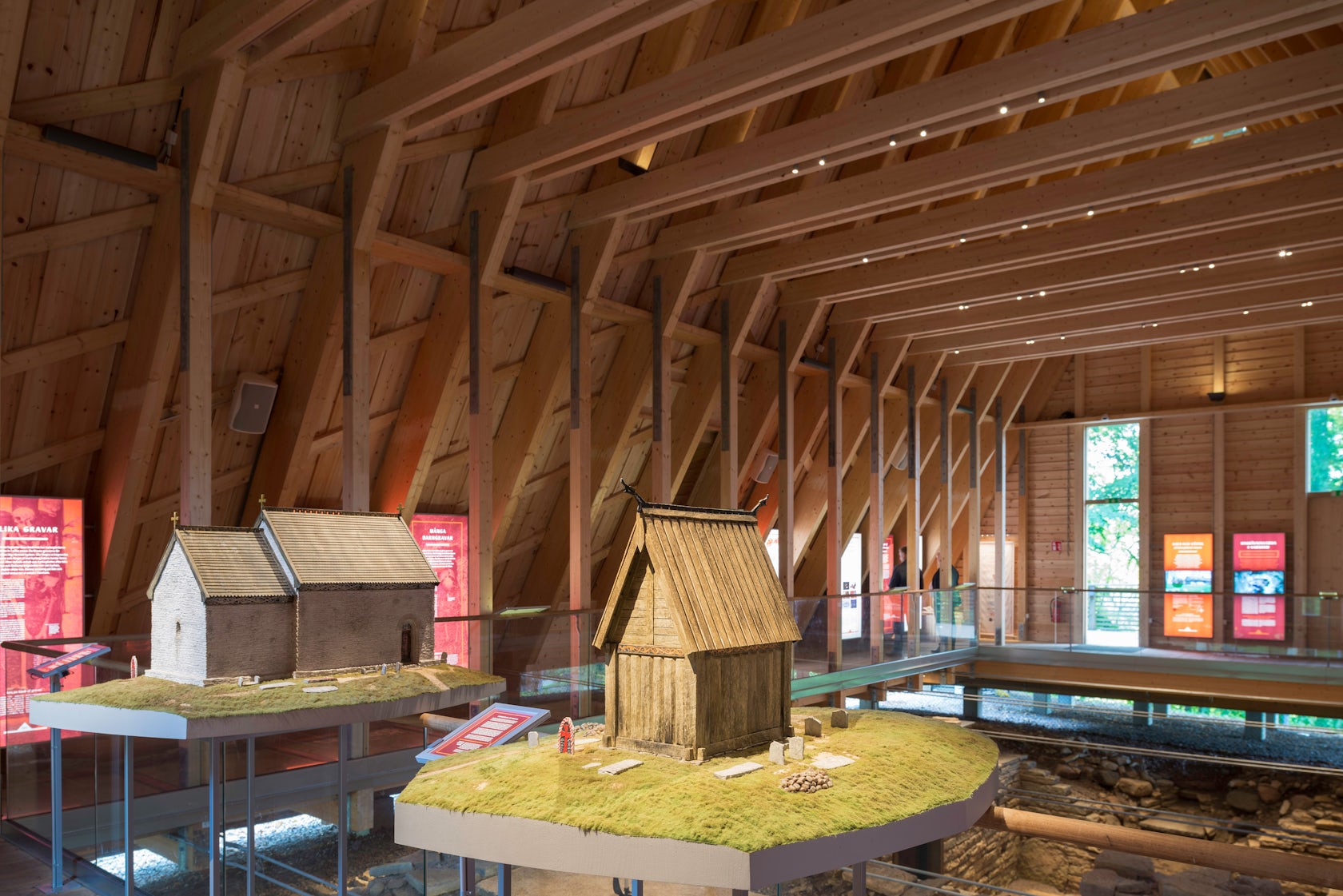

In order to make the old church accessible for visits, the church fundaments with its burial sites is protected from weather and wind. With a structure that works like a roof, the foundation is protected, but also creates a space for exhibiting and explaining the stories about the place and its history.

© AIX Arkitekter

© AIX Arkitekter

© AIX Arkitekter

© AIX Arkitekter

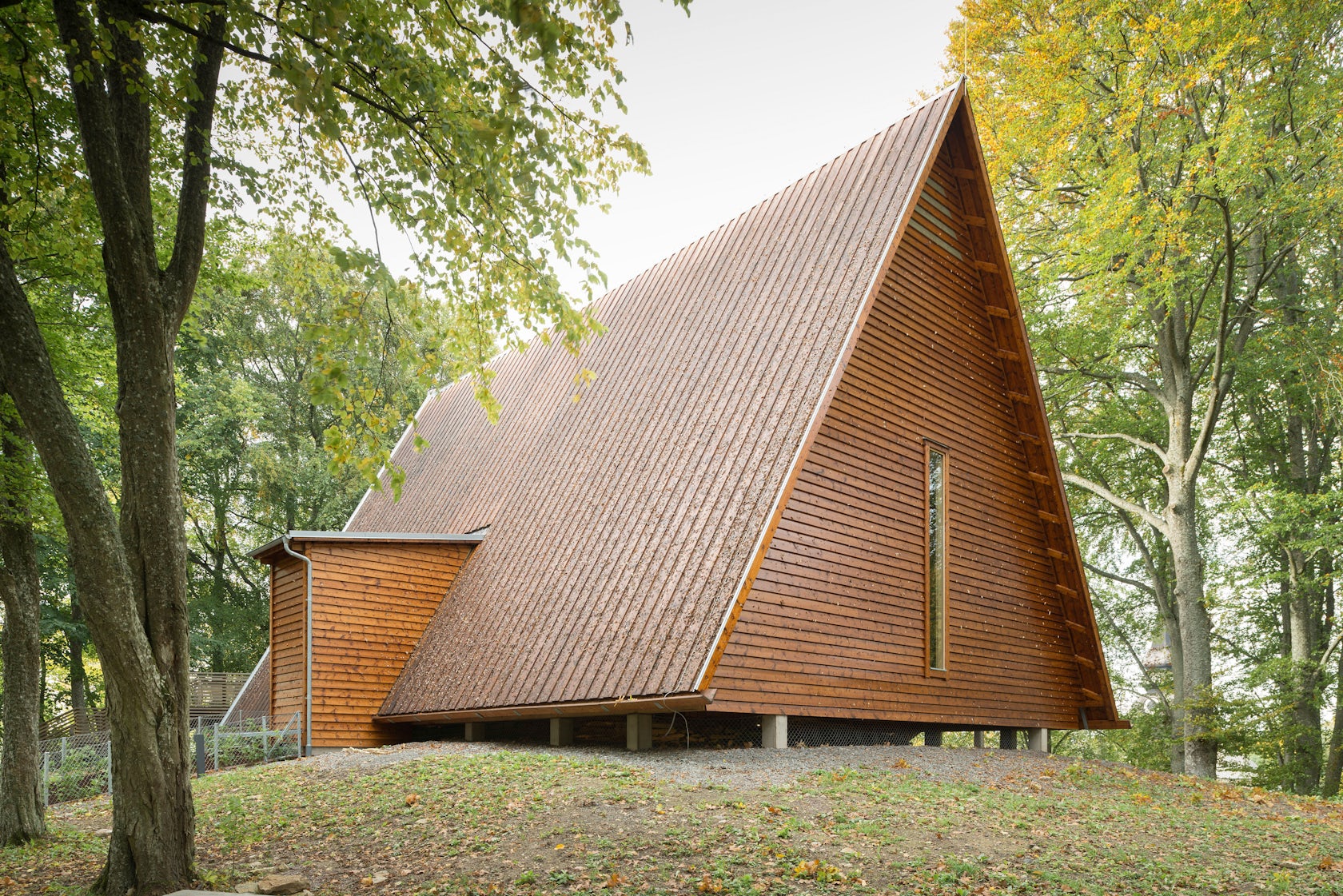

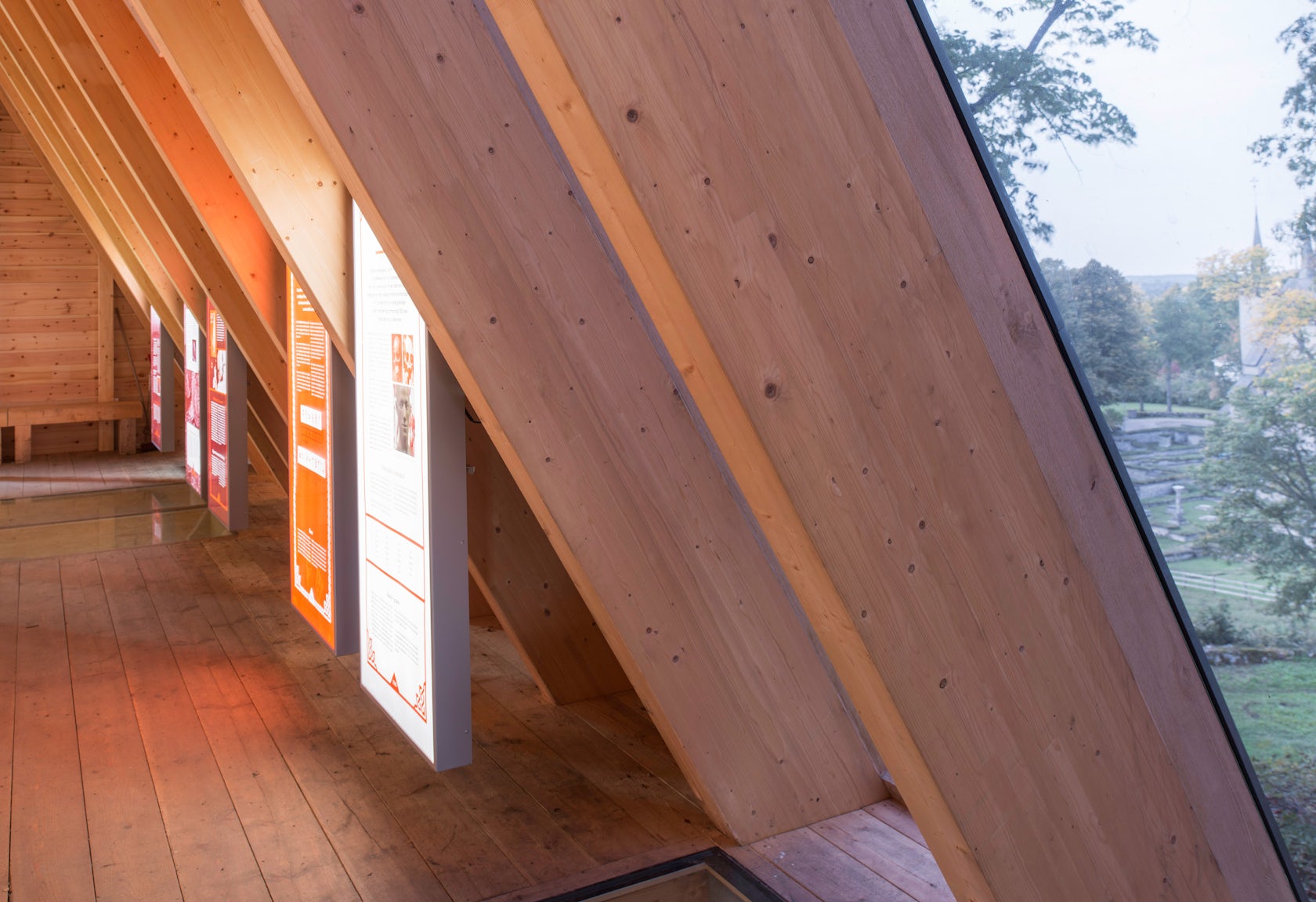

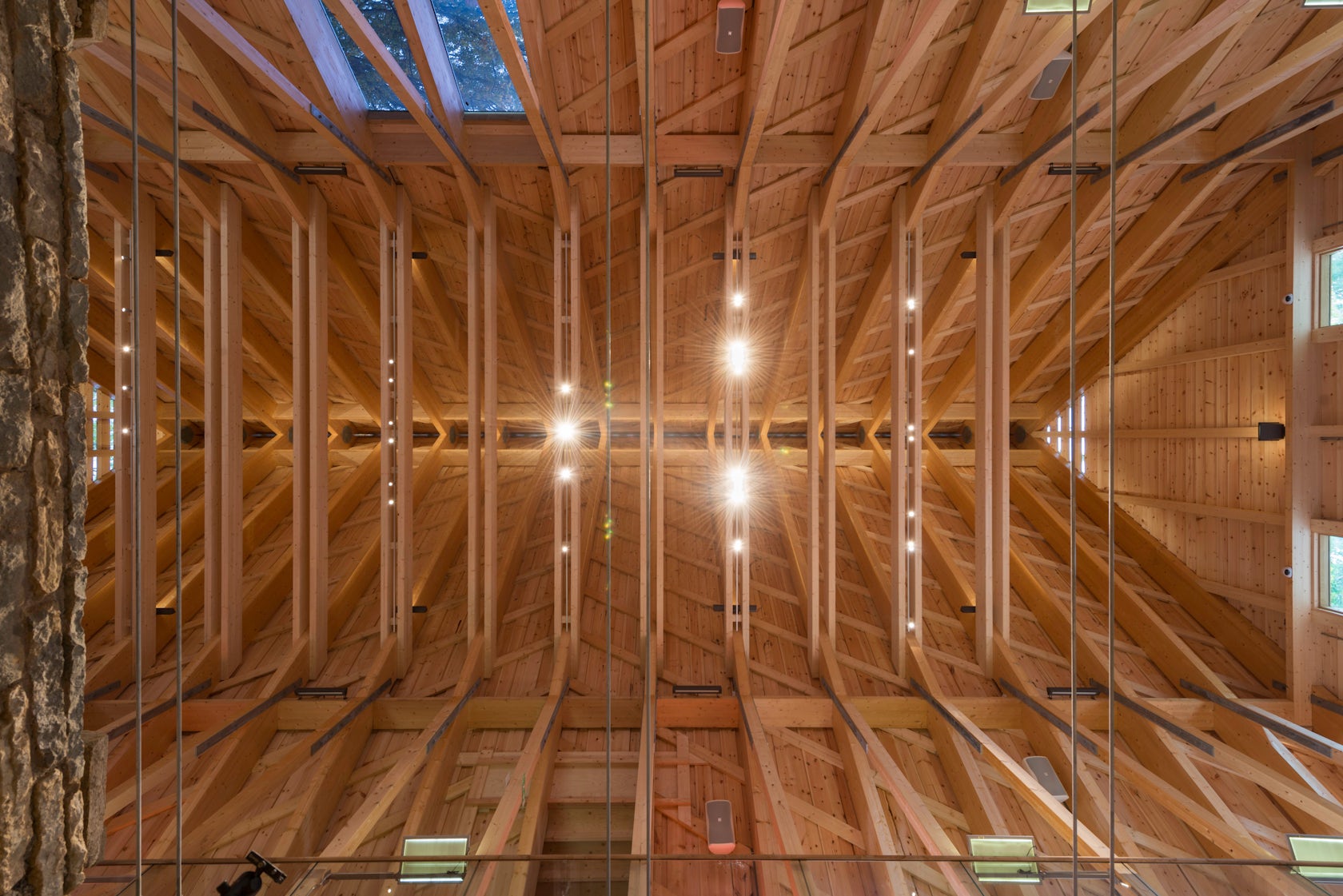

The building is constructed of glued laminated timber beams that form an equilateral triangle in its cross section, a timber roof truss. The timber roof trusses are placed on horizontal sill plates of glued laminated timber, which rests on a number of pillars in the ground. The sloping walls of the building are covered by pine tar treated woodroof.

© AIX Arkitekter

© AIX Arkitekter

© AIX Arkitekter

© AIX Arkitekter

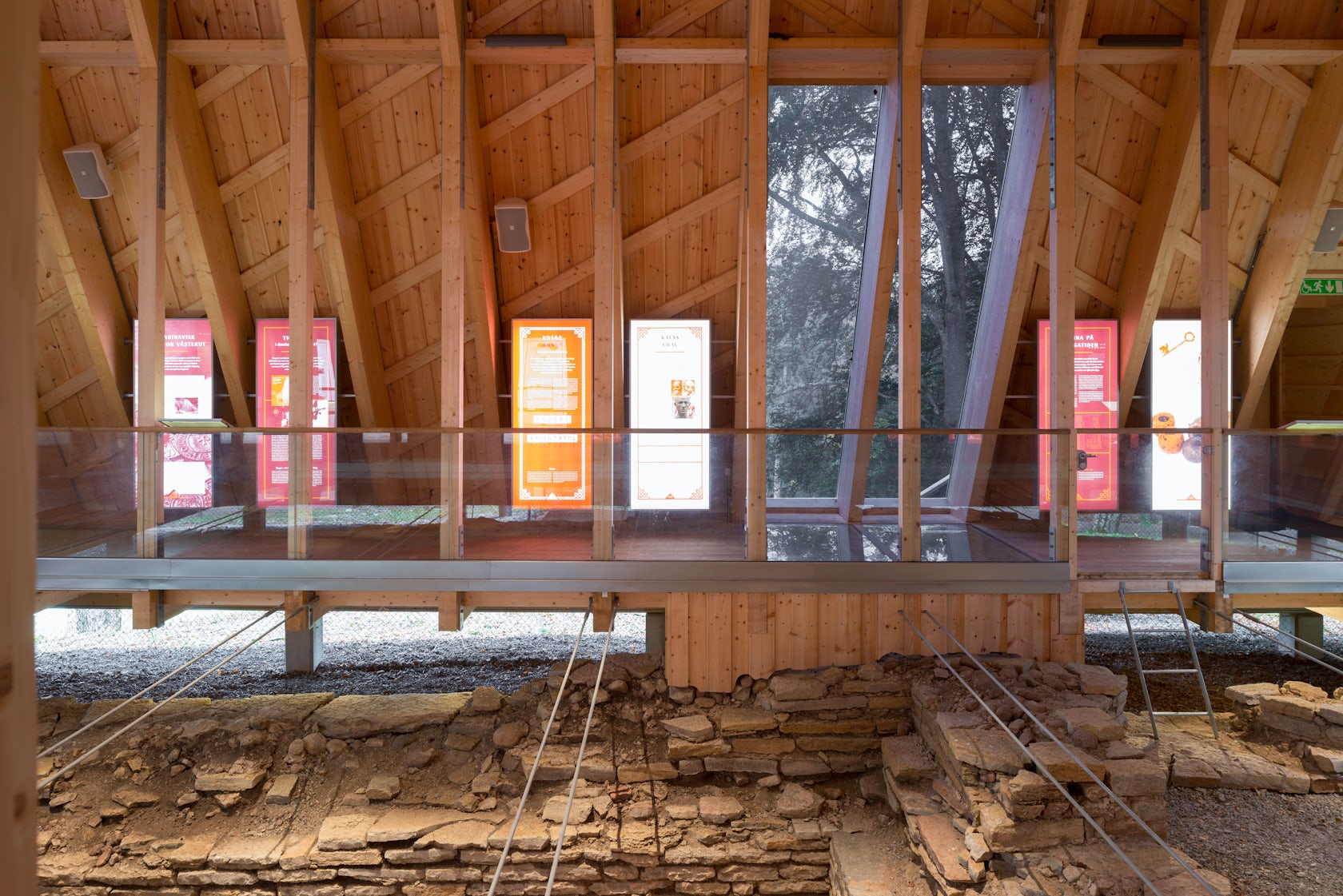

The room above the ground is open to see the masonry from above. The glazed railing let visitors to see the basement. Even Kata’s tomb from the mid-1000’s is visible through the glazed floor from above. A breakthrough in the limestone wall reveals the incision of the foundation wall and provides access to the stone basement.

© AIX Arkitekter

© AIX Arkitekter

© AIX Arkitekter

© AIX Arkitekter

An electrical lifting platform with glazed walls is installed between basement and the roof structure as an accessible alternative to the entrance staircase.

The structure above the ruin and grave is 12 meters wide, 19 meters long and 12 meters high. The building is not heated. The existing road to the monastery church has a hard surface to facilitate the visit to the ruins.In May 2017, the exhibition hall and weather protection were opened over the ruin of Sweden’s oldest church.Lead Architect: Magnus Silfverhielm.

© AIX Arkitekter

© AIX Arkitekter

© AIX Arkitekter

© AIX Arkitekter

Team: Klas Eriksson, Anders Widegren, Henrik Strid, Lotta Lindgren, Maria Kempe. Building management Ingvar BlixtStructure and elevator: Per SjögrenLandscape COWI ABElectricity engineering ProjektengagemangFire consultants Skaraborgs Brandkonsult ABBuilding contractor Bygghyttan i Karlsborg.

© AIX Arkitekter

© AIX Arkitekter

© AIX Arkitekter

© AIX Arkitekter

Kata Farm Gallery
