Architectural Drawings: Toronto’s Modern Home Designs in Plan and Section

From the Victorian charm of Cabbagetown to the modern Entertainment District, discover Toronto’s residential architecture.

Eric Baldwin Eric Baldwin

Architects: Want to have your project featured? Showcase your work through Architizer and sign up for our inspirational newsletters.

Across the sprawling metropolis of Toronto, the city’s past is etched into the very fabric of its residential structures. From historic neighborhoods and infrastructure to towering housing projects shaping the skyline, residential architecture embodies the city’s evolving identity. Building upon this story through new housing, architects and designers are rethinking how to build both single family and multi-unit homes.

From the Victorian charm of Cabbagetown to the modern Entertainment District, each Toronto neighborhood unfolds a distinct chapter in the city’s history. Navigating the streets of Toronto, the following projects explore residential design through plan and section drawings. Through these homes, the drawings showcase spaces where life unfolds one room at a time. The represent the interplay between form and function, tradition and innovation. Together, they give a glimpse into what it means to live in Toronto today.


Stacked House

By Atelier RZLBD, Toronto, Canada

This house comprises three distinct “blocks”: the lower one, featuring public programs, is stucco-finished; the middle block, housing transitional programs like the multi-purpose room, boasts charred wood finishing; and the upper block, hosting private programs such as the master bedroom, is clad in metal paneling. Despite using different materials to represent the blocks, the overall dark gray color subtly distinguishes them, blending monumentality with intimacy.

Located in Toronto’s Forest Hill neighborhood, the stacked house’s profile integrates well with its surroundings while challenging conventional aesthetics. A quadruple-height staircase with varied light shafts penetrates all blocks, connecting skylights to the basement. Its dark façade suggests monumentality externally, yet internally, it defies traditional spatial boundaries, fostering a fluid and dynamic experience. It offers an alternative typology that celebrates architectural freedom while maintaining spatial coherence.


Craven Road Cottage

By Anya Moryoussef Architect, Toronto, Canada

The humble single-story worker’s cottage in Toronto’s historic “Tiny Town” underwent a remarkable transformation, evolving from a dilapidated dwelling into a radiant pandemic sanctuary. Owner Laurel Hutchison, a retired schoolteacher with a fixed income, initially sought basic renovations to revive her 112-year-old home. The result is a 720 square foot, light-filled haven meticulously crafted on its original foundations, reimagining the vanishing worker’s cottage style prevalent in the city’s past.

Craven Road embodies a unique urban setting, once known as Erie Terrace, where modest homes housed lower-income laborers and immigrants. Dubbed “Tiny Town,” this enclave boasts Toronto’s highest concentration of detached homes under 500 square feet, fostering a tight-knit community amidst the city’s soaring costs. The project aimed to retain the original single-story layout to support Laurel’s aging-in-place strategy.


Fichman Penthouse

By SvN Architects + Planners, Toronto, Canada

Architect Drew Sinclair of SvN oversaw the transformation of a compact condo in Toronto’s business district into a permanent residence for film producer Niv Fichman. Developed over five years, amidst debates about the city’s condo market instability, the project blends contemporary architectural detail with the city’s rapid transformation. Defined by a meandering walnut-lined promenade, the space offers carefully composed views of interior and exterior spaces.

Niv’s collection of Asian art and religious sculptures adorns softly lit niches along the path, while sliding panels conceal private areas such as the laundry and library. Versatile millwork serves multiple functions, from wine sorting to concealing mechanical equipment, reflecting the fusion of practicality and elegance. A centerpiece is the glamorous freestanding bathtub atop a mahogany wood-slatted floor, designed by Sinclair for both relaxation and entertainment. The project embodies the power of iterative design, evolving into a complex yet refined home.


Mount Pleasant House

By Roundabout Studio, Toronto, Canada

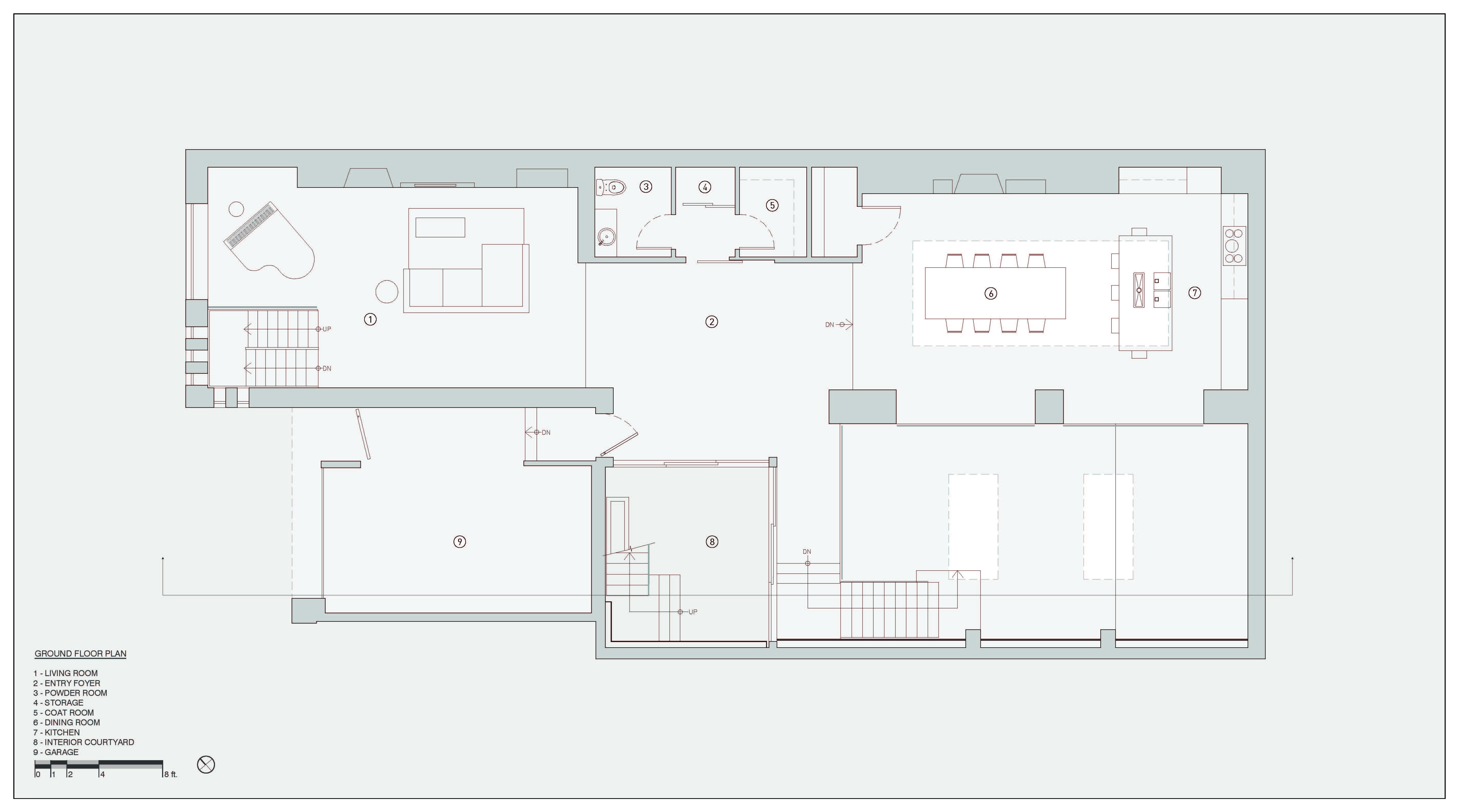

Once home to Cruickshank’s, a beloved flower bulb distributor, this site lay vacant until a local music enthusiast saw potential. In 2012, Roundabout Studio was enlisted to transform the buildings into a cohesive residence focused on music and entertainment. Situated in bustling Toronto, the house offers refuge from the street noise with strategic window placement. The interior is bathed in light from skylights and an interior courtyard, providing privacy and serenity.

The more public zone of the home features an open-plan layout conducive to gatherings of any size. Above the former cold storage area, a 16-foot tall Cor-ten steel light feature pays homage to the building’s history. Restored to prominence, this revitalized home remains a proud fixture in the Toronto neighborhood, blending modernity with its rich past.


Walmer Duplex

By Mehdi Marzyari Architects Inc., Toronto, Canada

The restoration and transformation of a landmark Edwardian residence, built between 1905-1910, is the contribution of a university professor and his family to Toronto’s historic Annex neighborhood. Formerly a university students’ rental, the neglected structure was left uninhabited in critical condition. The design goal was to create a new duplex with potential for conversion to a single-family dwelling.

Respecting the context, the transformation maintains the house’s historic character while adapting it to modern family life. Despite lacking historical designation, the renovation preserves original features and detailing through a minimal yet innovative architectural approach, achieving a harmonious blend of old and new. A new two-story addition replaces the unoriginal one-story mass at the back, featuring large glazed walls for connectivity and a cedar screen for privacy. A cedar deck seamlessly integrates the outdoor space with the interiors, blending the rear addition with nature.


CORE Modern Homes

By Batay-Csorba Architects, Toronto, Canada

CORE Modern Homes is a 7-unit townhouse development situated in Toronto’s Leaside neighborhood along Eglinton Avenue, primed to be a new transit corridor with the upcoming LRT line. Designed for family life, these contemporary residences offer spacious living and dining areas, large kitchens, three bedrooms, serene master suites, flexible loft spaces and four private terraces per unit totaling 500–600 square feet each.

The front-facing windows are a modern take on traditional bay windows, adding visual interest to the façade and maximizing natural light and ventilation. Each unit establishes a dynamic relationship between interior and exterior spaces, embracing views of the sky and surrounding area. As the team states, the units showcase a continuous unfolding between interior, private garden spaces, and outside.


Waxwing Residence

By Ancerl Studio, Toronto, Canada

The Waxwing Residence is a 4200 square foot, three-level home nestled in a forested ravine lot, boasting six bedrooms and eight bathrooms. Its unique design features two wings connected by a transparent glass bridge, harmonizing with the surrounding trees. One wing sports a black palisade façade for privacy, while the other gleams with reflective titanium, exuding monumentality. Guests enter through a curved titanium wall leading to a serene zen garden with a red maple tree.

Inside, the focus is on openness and nature, with the entrance level naturally flowing into the main living areas. A large hangar glass door opens the living space to the outdoor pool and dining area. The heart of the home centers around a panoramic fireplace, serving multiple functions like entry to the basement, entertainment unit, wet bar, and wine cabinet. On the second level, the home divides into two wings: a titanium wing housing the principal suite and a palisade wing for kids’ bedrooms. The glass bridge connects these wings over a green roof, providing abundant light and views of the surrounding landscape.
