Split Box House // DiG Architects

Atlanta, GA, United States

Architizer Editors Architizer Editors
Want to see your project featured like this?
Enter the 11th Annual A+Awards, opening this fall! Register for Updates →

Text description provided by the architects.

The Split Box House, for a busy working couple and their three children, is located near Emory University and the CDC in Atlanta, Georgia. The client’s wanted a house that is a quiet, restrained, escape from the excessively noisy digital world that overly stimulates their daily lives and is a reaction to the surrounding banal spec homes each a louder spectacle than the next.
Simple and clean in its form the house started as a twenty-two foot wide extruded box.

© DiG Architects

© DiG Architects

© DiG Architects

© DiG Architects

That width was chosen based on the distance a reasonable size wood truss can span. This ensured that no interior support walls were required allowing for an uncomplicated open floor plan. Arranged in an efficient pattern to eliminate waste, the primary exterior cladding of the box is a low maintenance grey cement panel.

© DiG Architects

© DiG Architects

© DiG Architects

© DiG Architects

The panels attached as an open joint ventilated rainscreen system help manage moisture intrusion and reduce energy consumption.

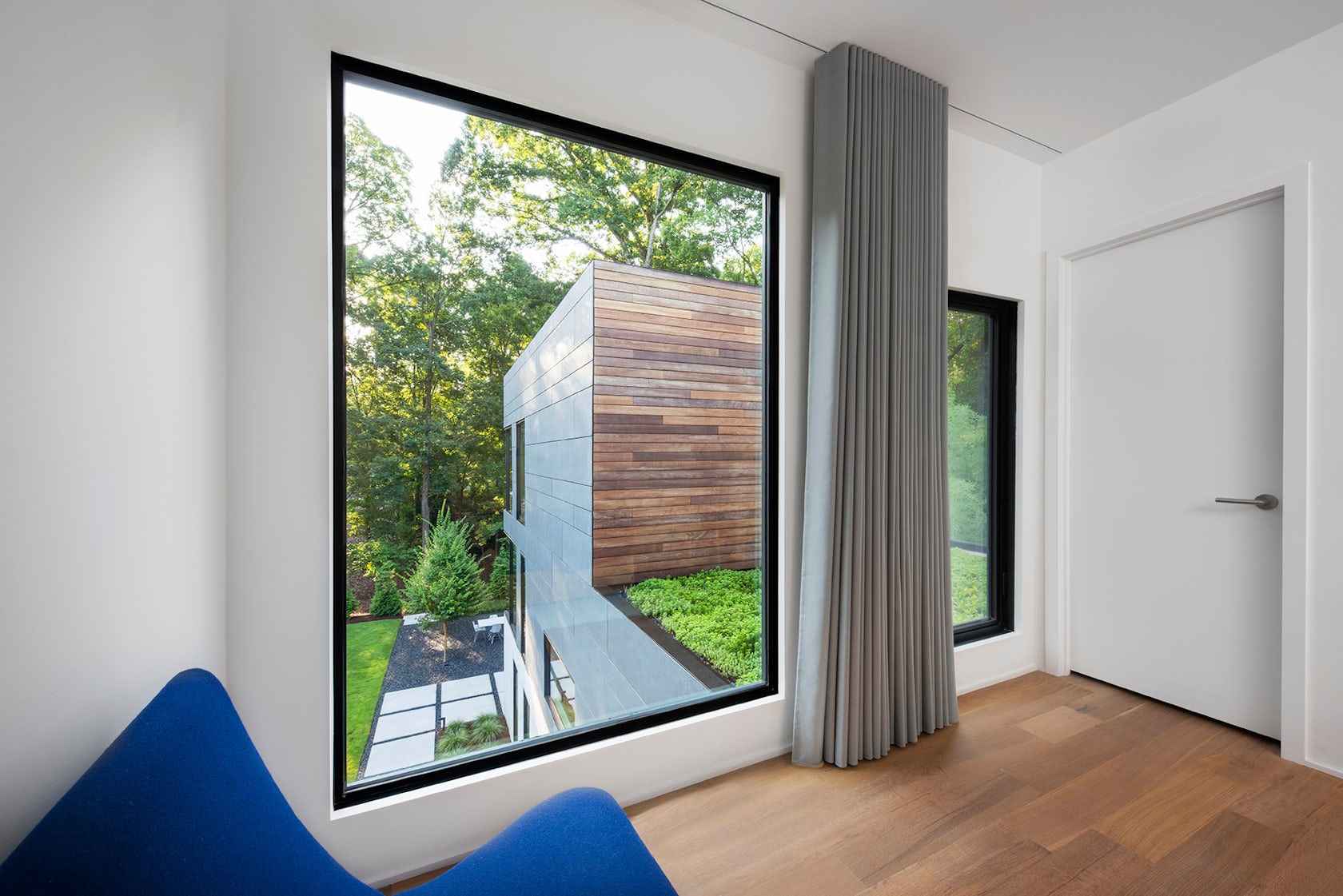

Cut to the desired length based on the space requirements of the family, the box is subsequently split into public and private volumes allowing for a clear delineation between functions. The private portion is rotated ninety degrees around the sky-lit stair hall to maximize views to the serene woods behind the house.

© DiG Architects

© DiG Architects

© DiG Architects

© DiG Architects

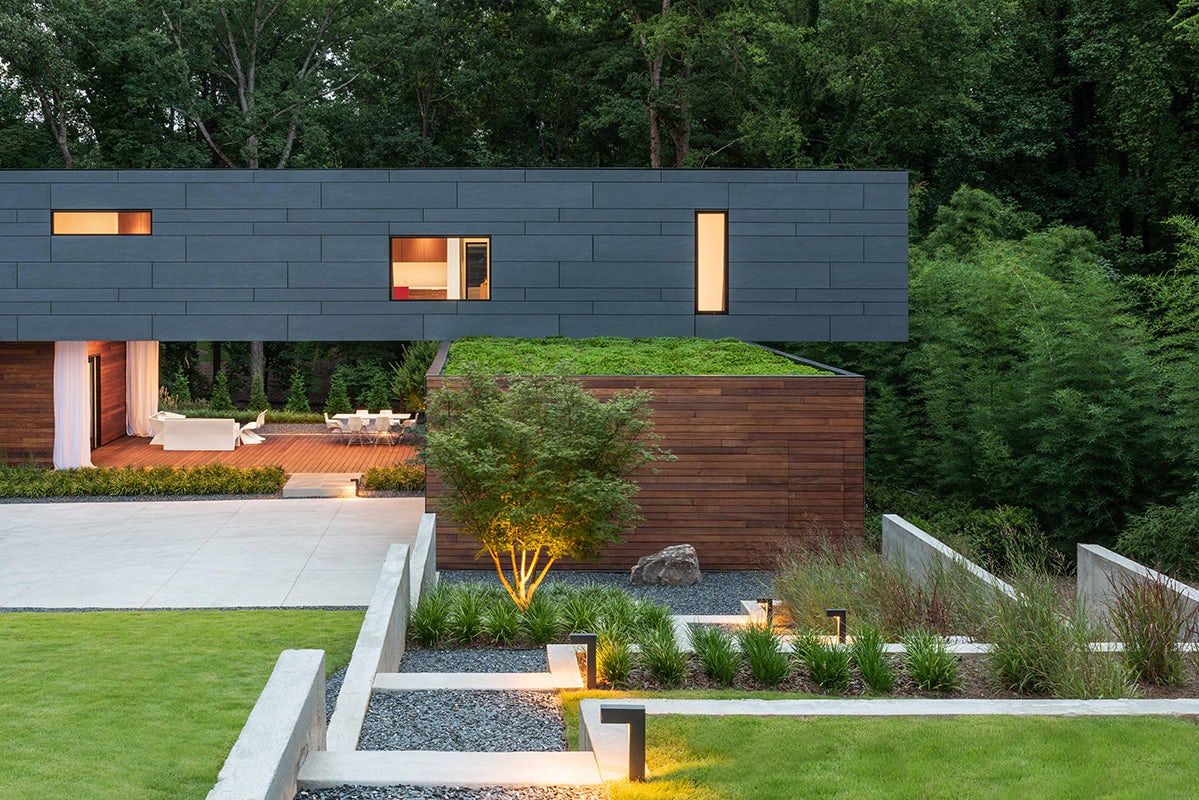

A complimentary warm ipe wood, alluding to the softer interiors of the house, clads the cuts. The exposed roofs are covered with vegetation to reduce stormwater runoff, mitigate energy consumption and improve air quality.

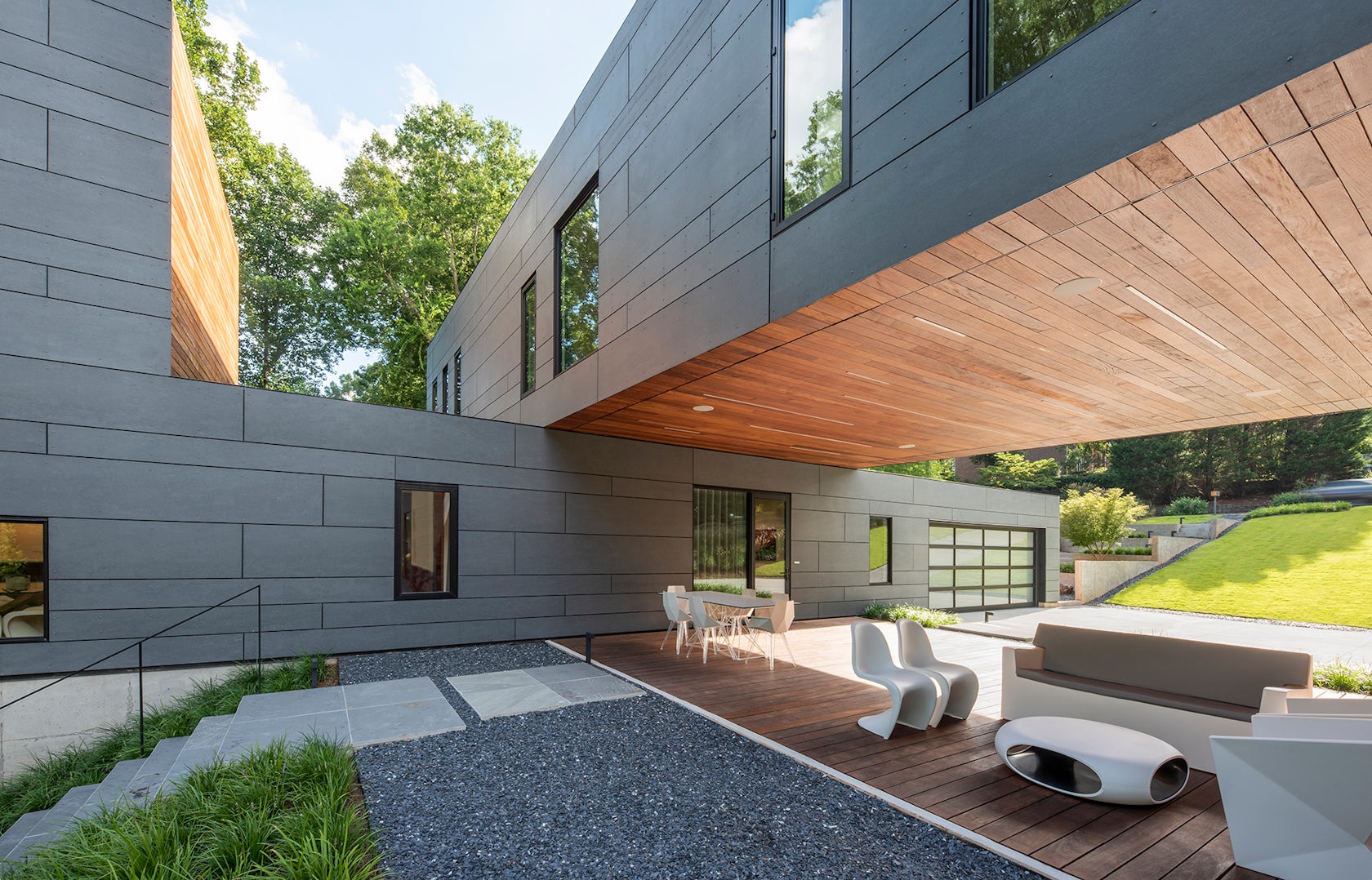

The private functions, comprised of the bedrooms upstairs and the guesthouse on the main level, bridge across a covered breezeway creating an outdoor room with a view corridor to the woods and access to the main and guest house entrances.

© DiG Architects

© DiG Architects

© DiG Architects

© DiG Architects

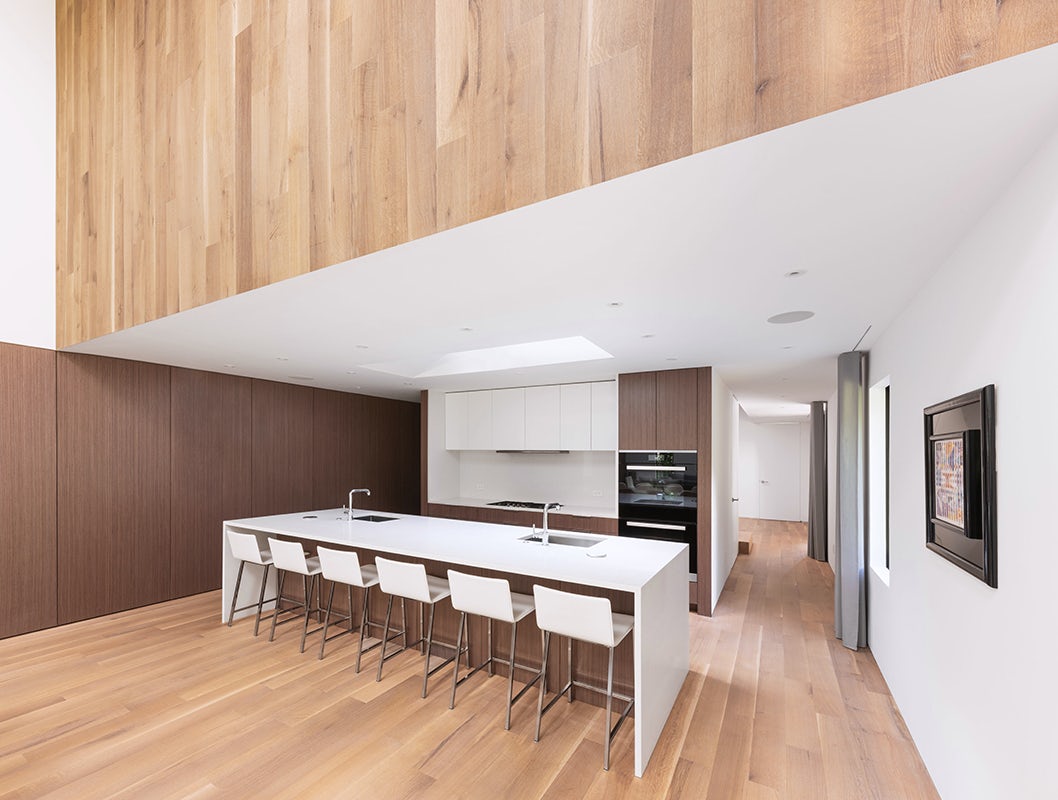

The public functions move through a series of low and tall spaces culminating in a double height sky-lit space that provides shifting light patterns throughout the day. Lined with cabinets on one side that serve as storage, housing for the entertainment center, fireplace, dining room buffet, refrigerator, and freezer allows the spaces to stay open, clean, and uncluttered.

© DiG Architects

© DiG Architects

© DiG Architects

© DiG Architects

The quiet interiors create a relaxing calm environment that is about the space itself and the views to the outside.
A series of site walls, carefully nestled into the steep lot, cascade down the front hill from the street to create a terraced entrance garden that becomes the exposed foundation of the house.

© DiG Architects

© DiG Architects

© DiG Architects

© DiG Architects

Long grasses reinforce the simple geometric forms of the house with their naturally soothing sway and unify the engineered slopes that mitigate the grade differences of the site. The manicured lower lawn adjacent to the grove of trees give way to the ever changing natural beauty of the woods beyond..

© DiG Architects

© DiG Architects

© DiG Architects

© DiG Architects
