Llinars del Vallés // GGG Gustau Gili Galfetti

Carrer Joaquim Blume, Llinars del Vallès, Spain

Architizer Editors Architizer Editors
Want to see your project featured like this?

Text description provided by the architects.

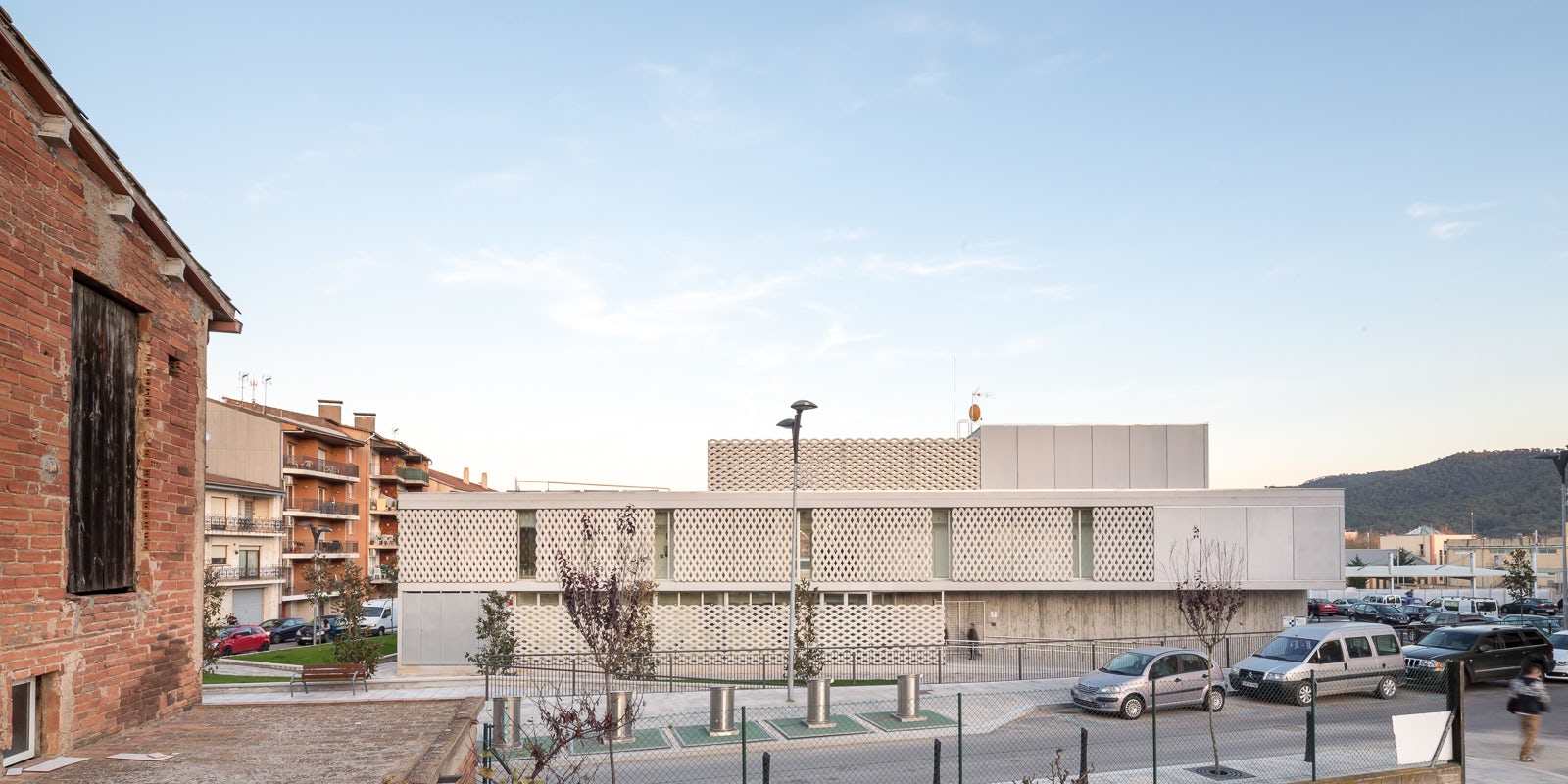

The project proposes a compact and low-impact structure using economic and industrialized construction systems. The building, with its rectangular section, is located in a low-density area of the city with sports installations and parking areas, close to the town center. The healthcare center is placed in the upper section of this area, closer to the urban grid.

© Filippo Poli

© Filippo Poli

© Filippo Poli

© Filippo Poli

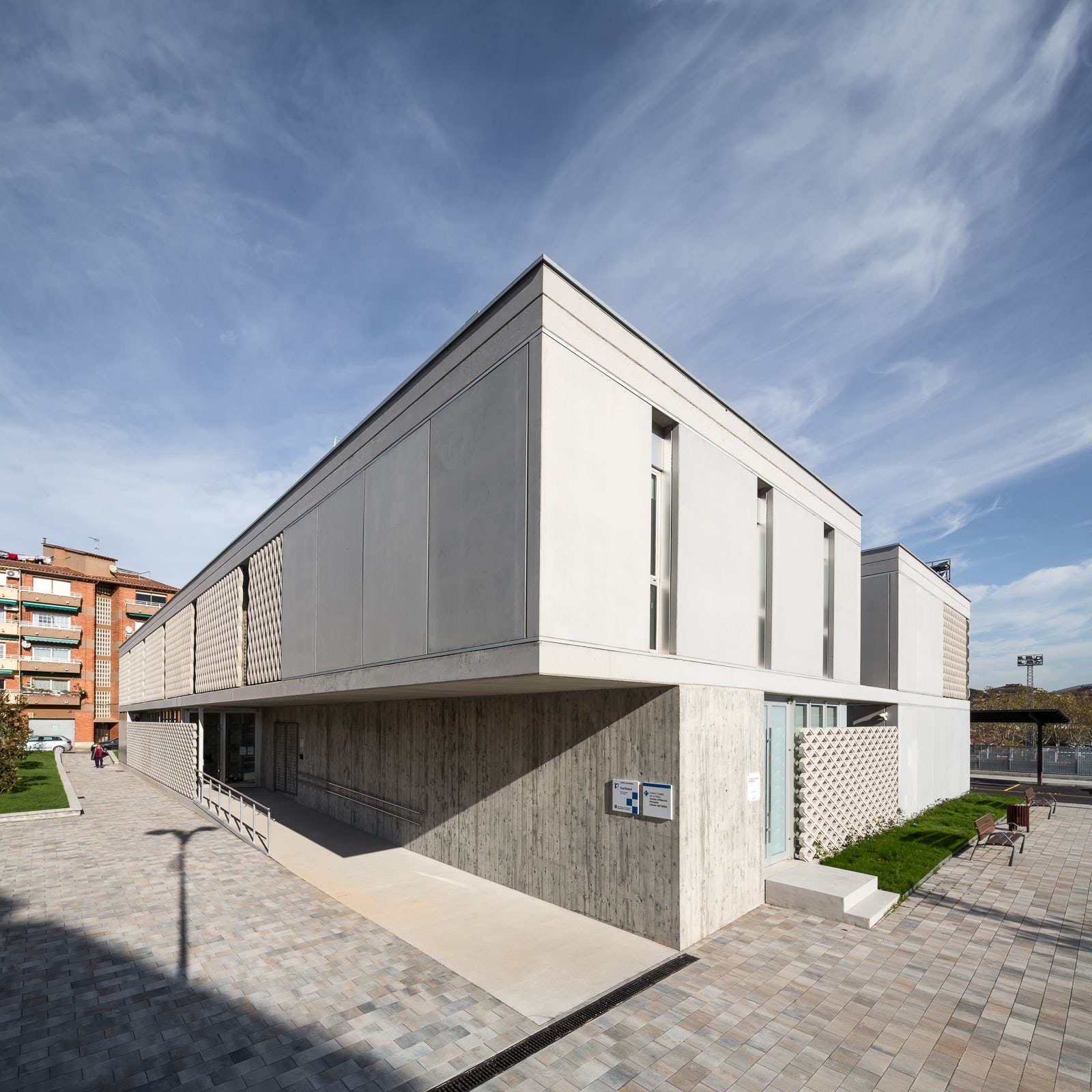

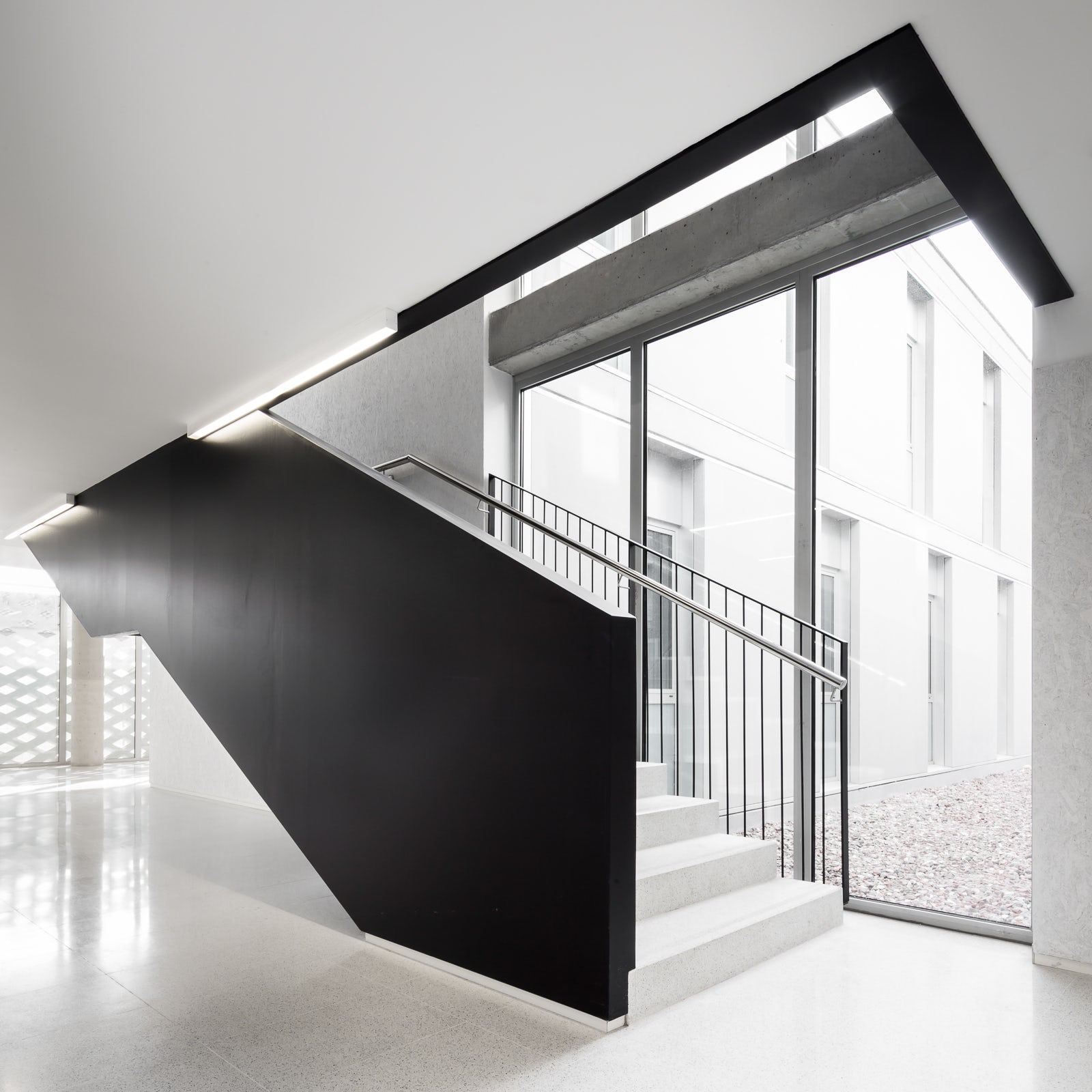

A cantilevered volume reaches out toward the street, where the main entrance is located. Some ramps resolve the different topographical levels between street and entrance and create an open green space. The rectangle is oriented in such a way so that the longer façades face east and west. A longitudinal interior courtyard opens from north to south and lets the natural light pour into the inner part of the building, thus assuring effective cross ventilation.

© Filippo Poli

© Filippo Poli

© Filippo Poli

© Filippo Poli

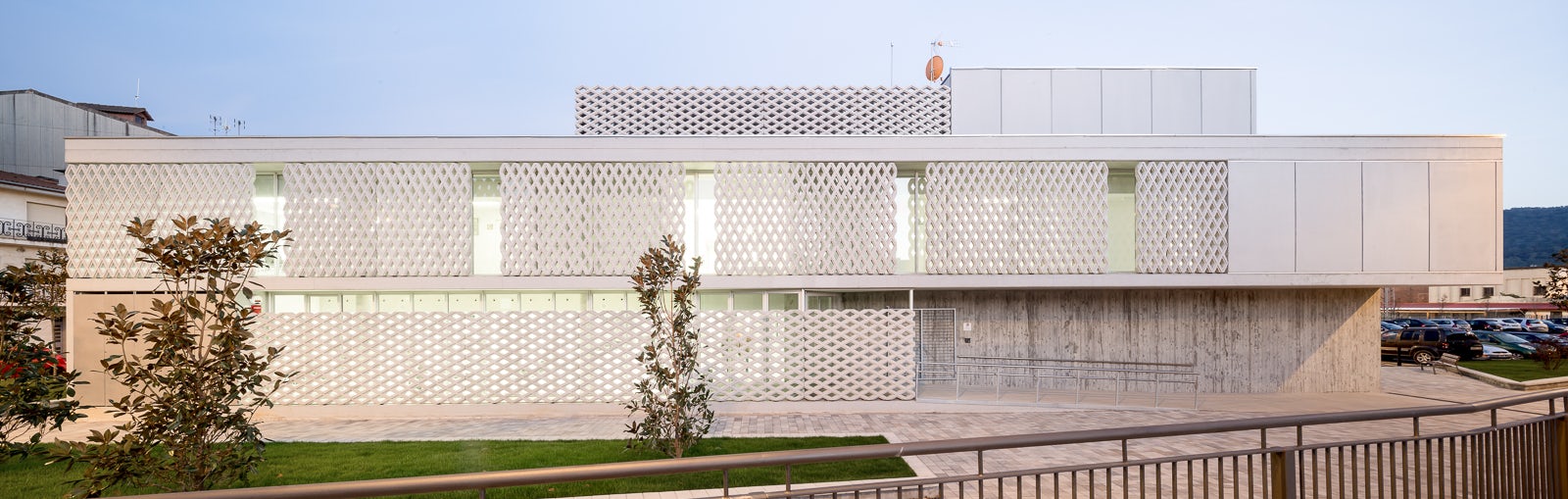

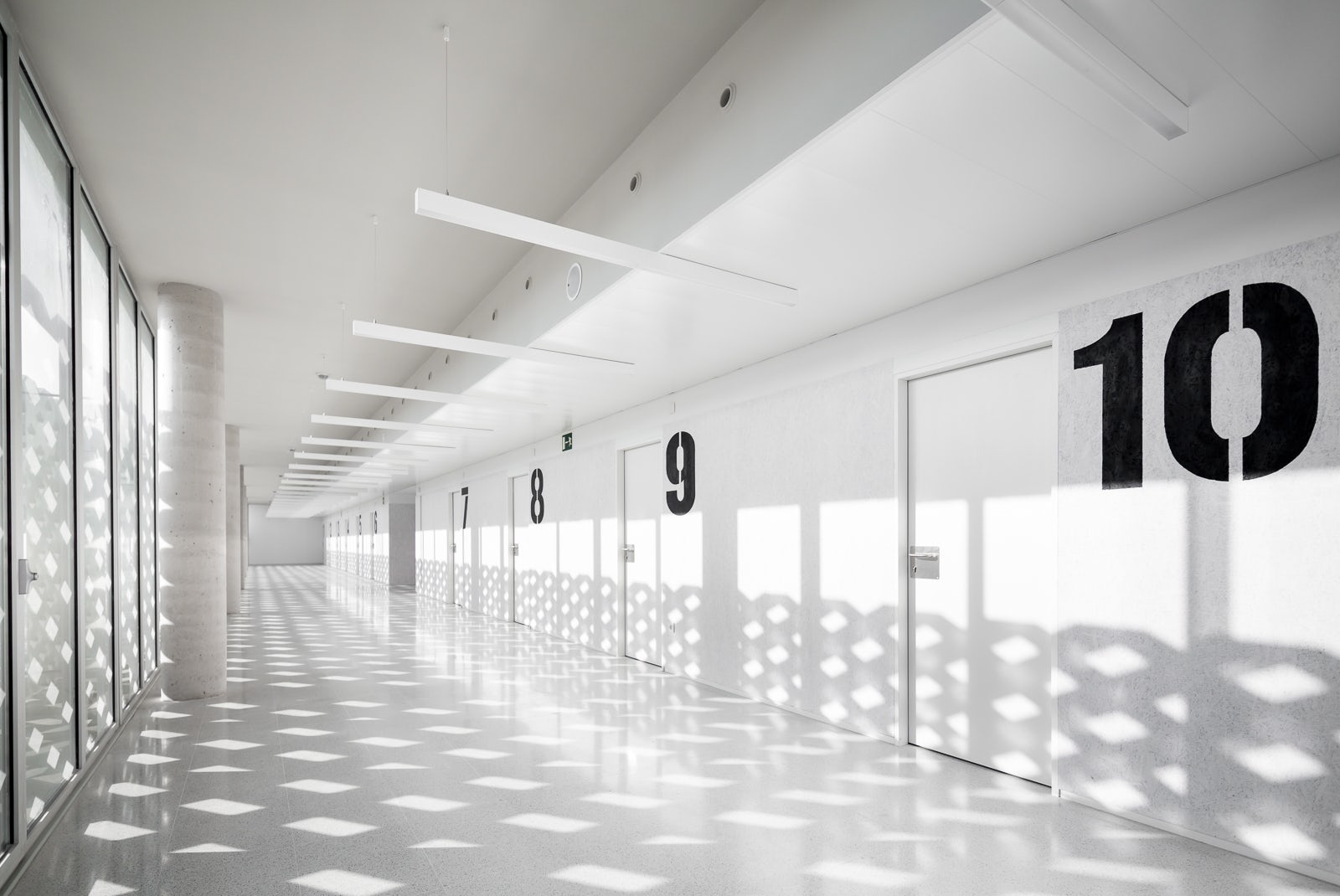

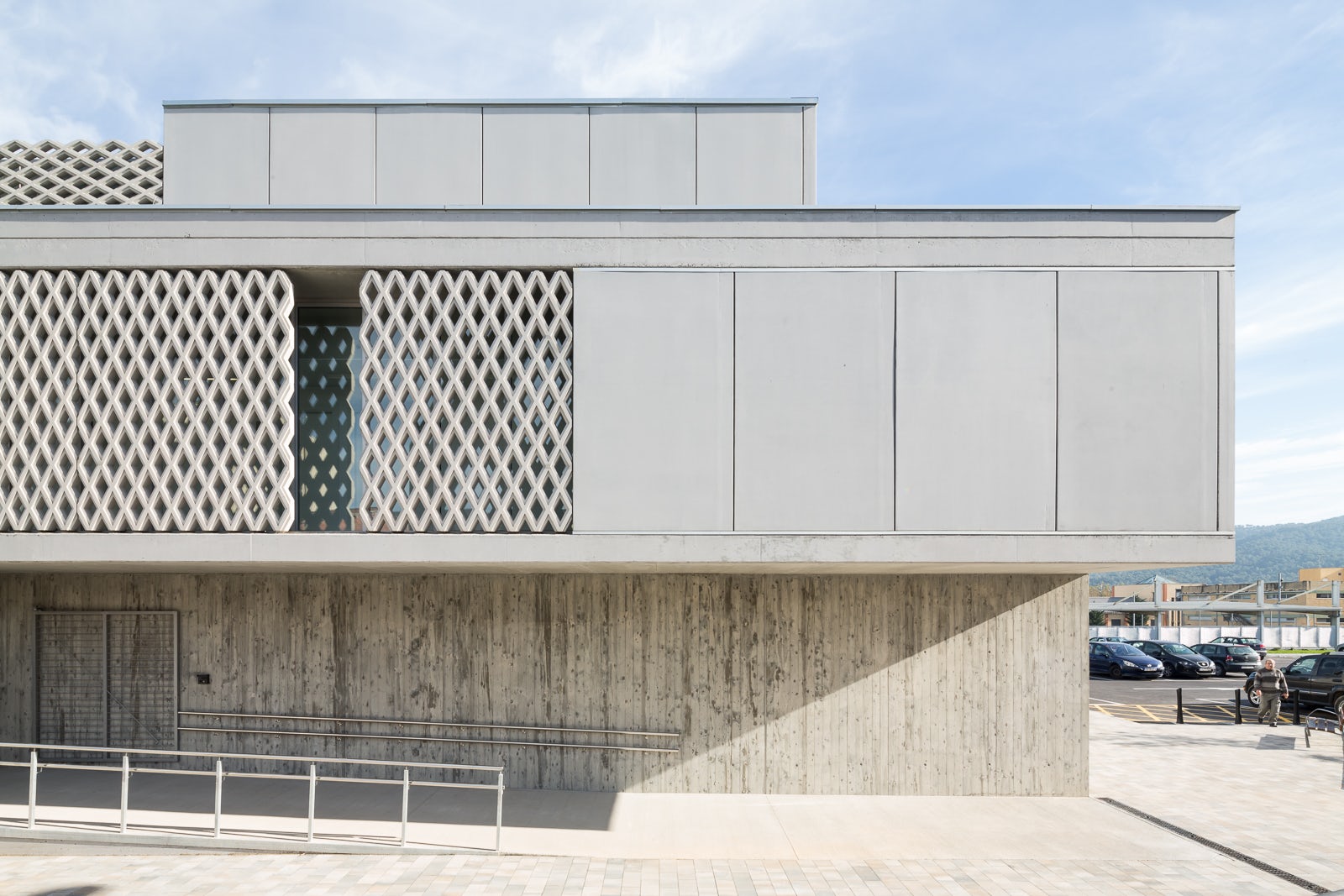

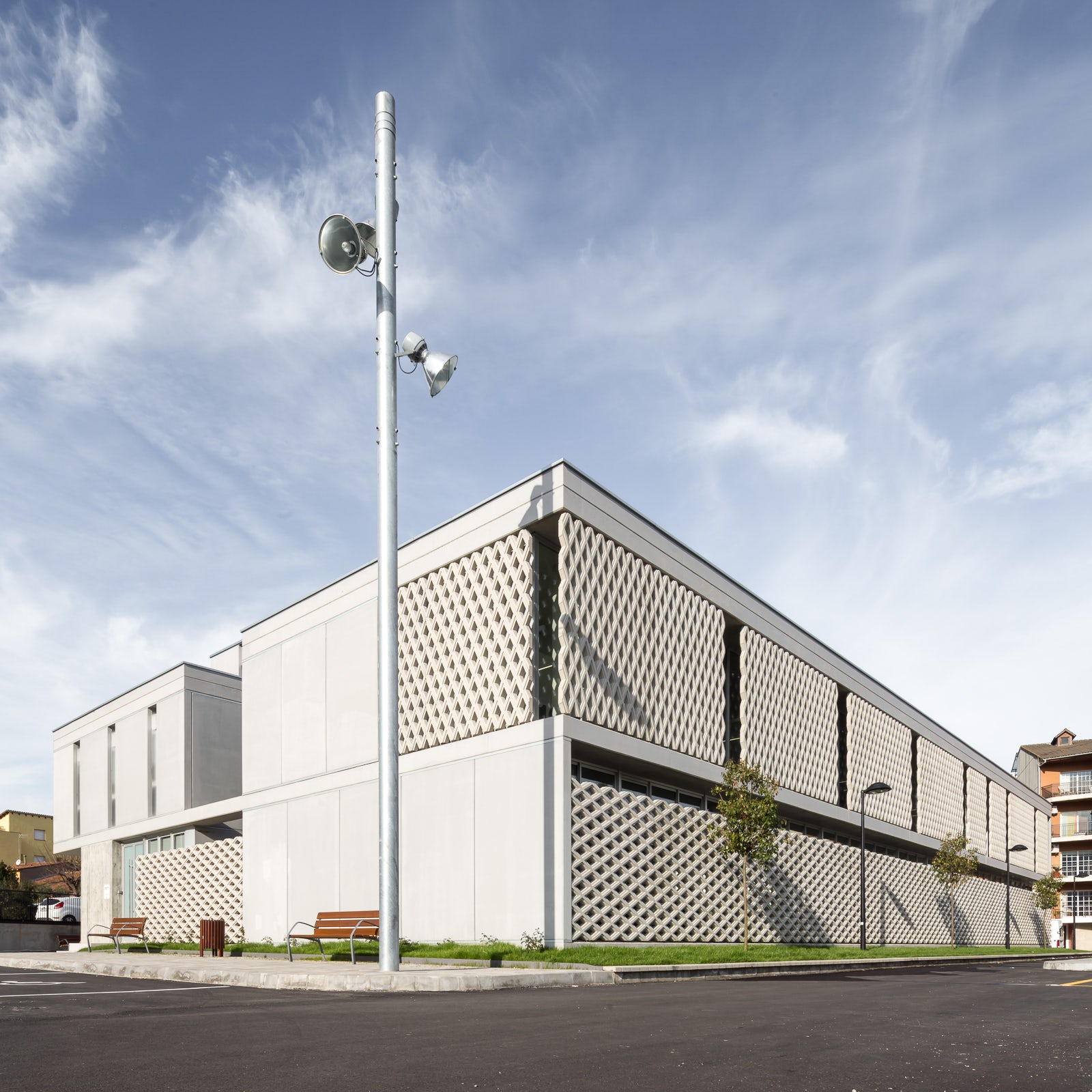

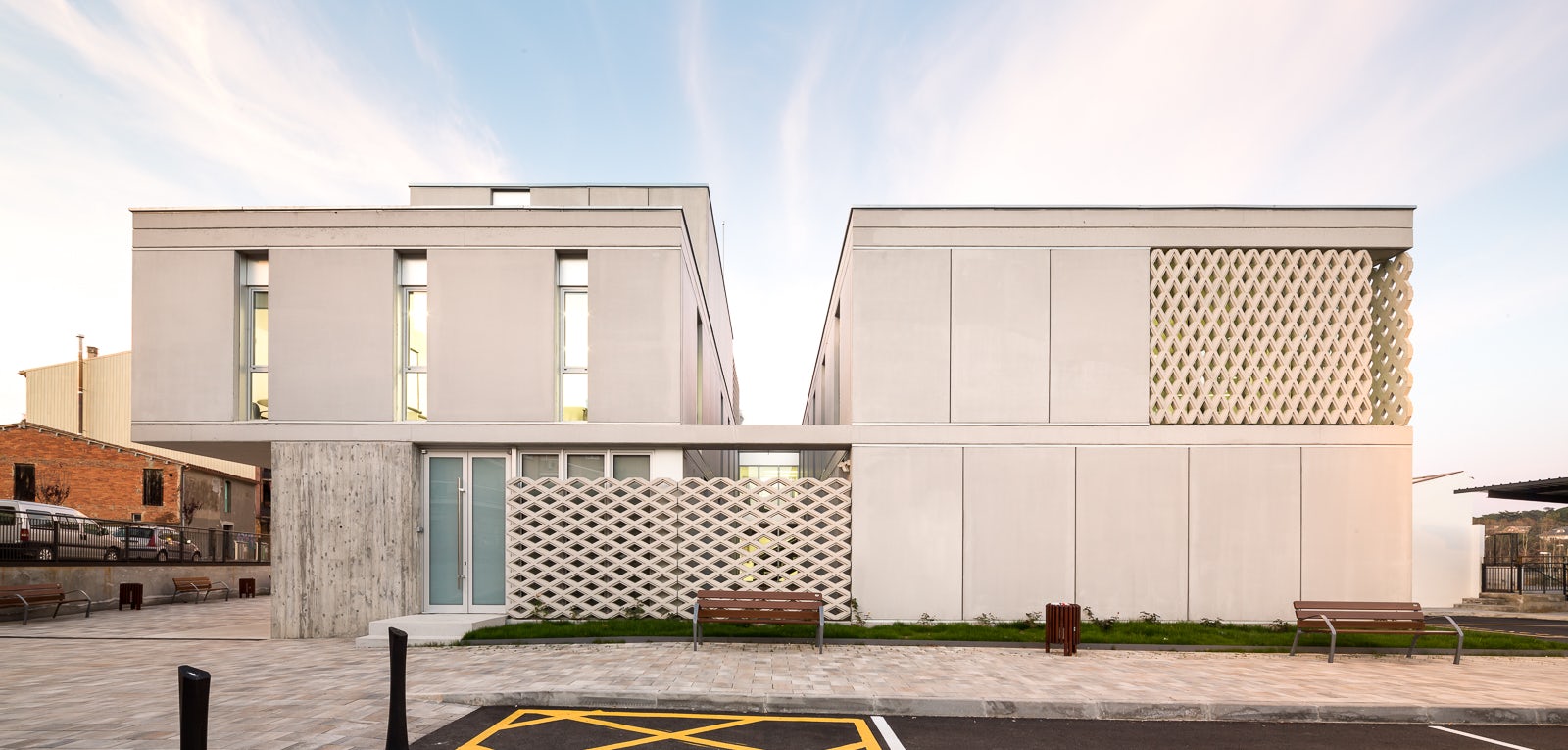

Waiting areas and circulations are visually connected to the exterior and emphasize its public character, while the medical boxes face the interior court. The building forms a compact low-rise volume. Its façade is made of two prefab elements: a concrete lattice for the translucent parts and some GRC panels for the blind parts.

© Filippo Poli

© Filippo Poli

© Filippo Poli

© Filippo Poli

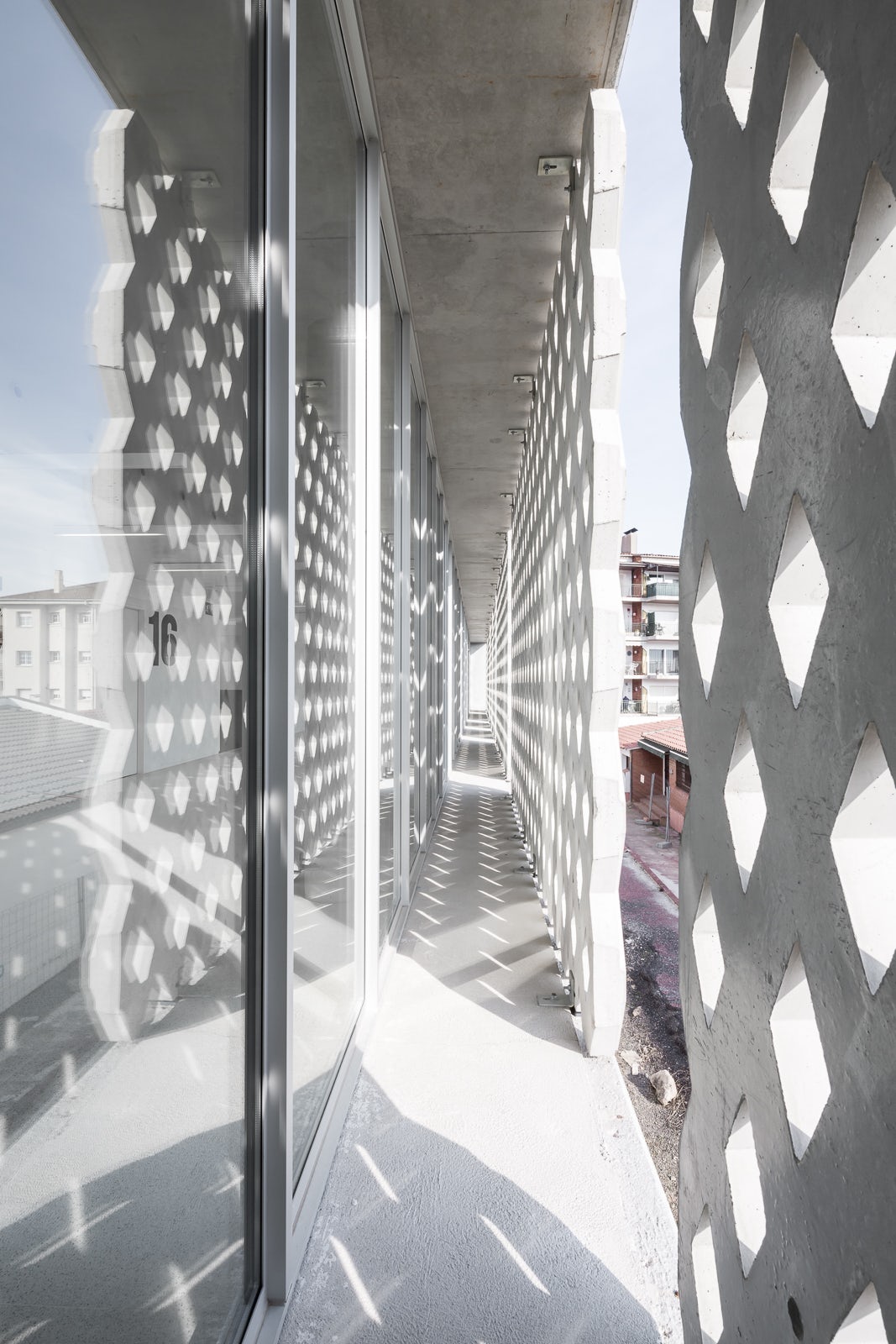

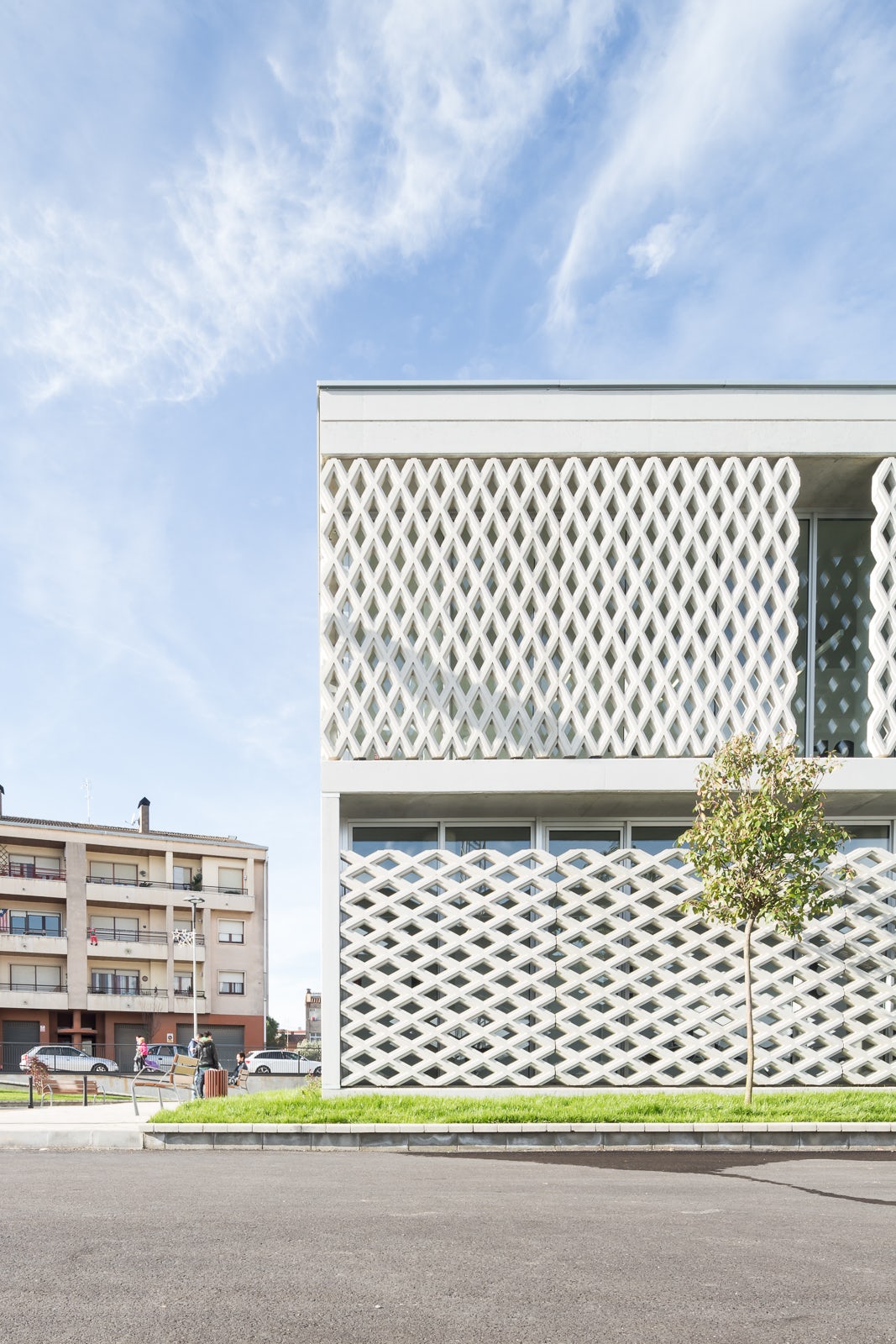

The lattice was fabricated with one purpose-made large-size mold and has been installed either horizontally or vertically to add variety to the façade by only one standard constructive element. This lattice assures privacy as well as solar protection in exposed areas. Above all, it acts as guarantor for giving a vibrant and ever-changing visual effect.

© Filippo Poli

© Filippo Poli

© Filippo Poli

© Filippo Poli

According to the change and angle of daylight, the industrialized prefab concrete building turns into a kind, warm, and comfortable building..
