Horse Stable // 57studio

Coelemu, Chile

Architizer Editors Architizer Editors
Want to see your project featured like this?

Text description provided by the architects.

Replacing an existing structure used as a barn on a farm in the region of Bio Bio, it is requested to rebuild a higher-capacity version with 4 stables, 2 cellars and 1 trough. Because of the distance and the labour shortage, it is devised a mechanized construction system to be assembled on the site by two carpenters on a short time.

© Maurizio Angelini

© Maurizio Angelini

© 57studio

© 57studio

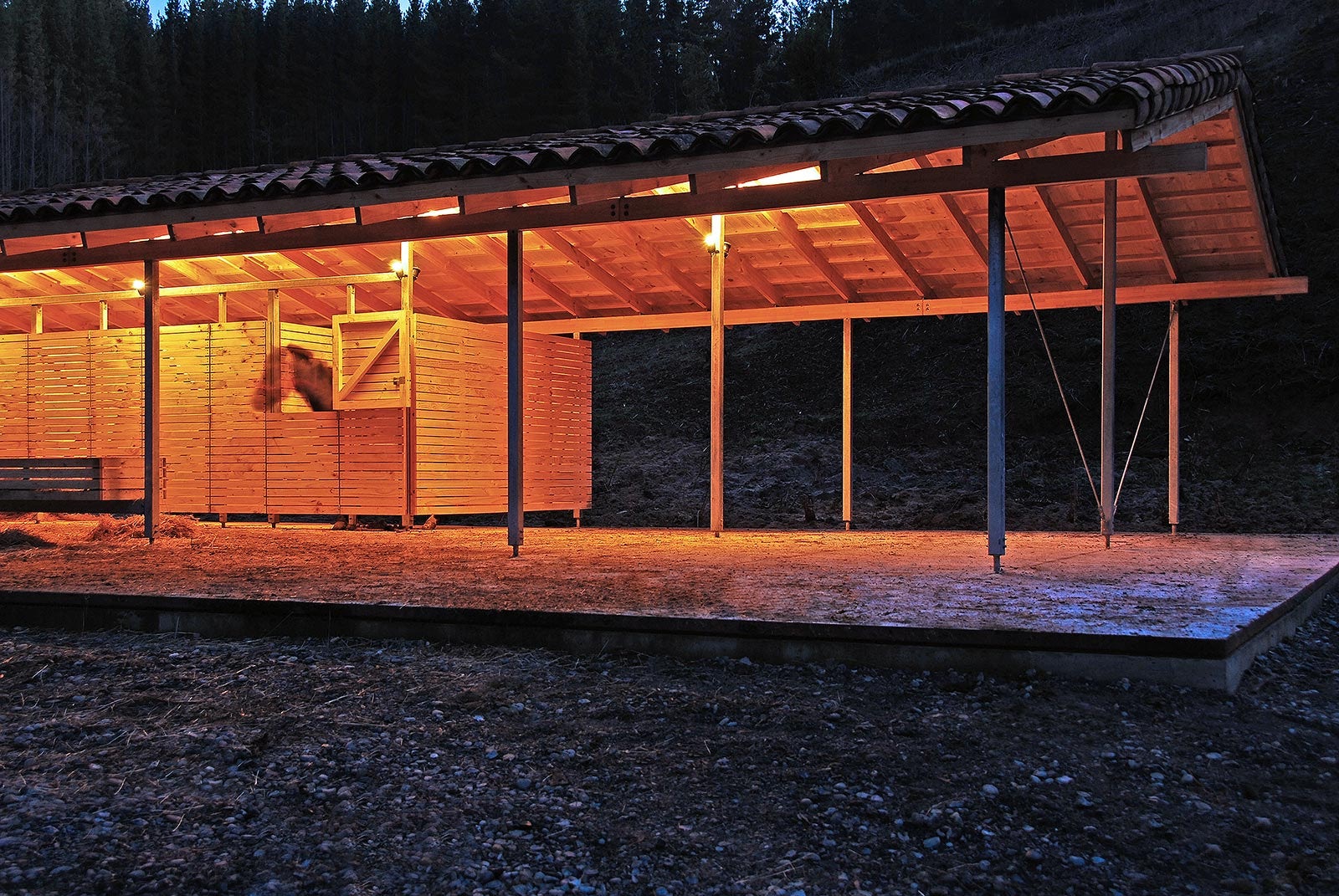

The system combines a series of galvanized steel precast units with pine wood modular elements and the reuse of old demolition roof tiles.

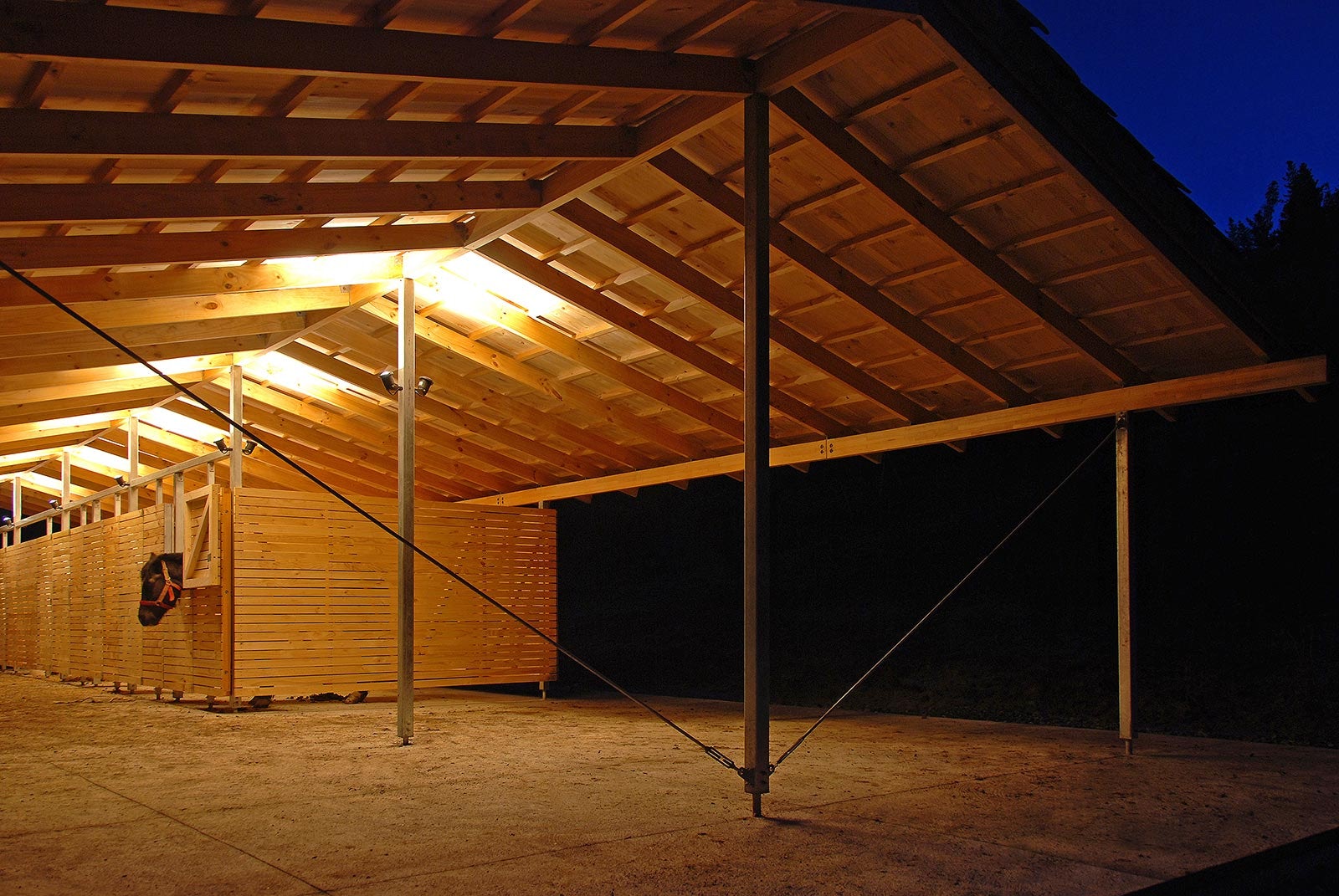

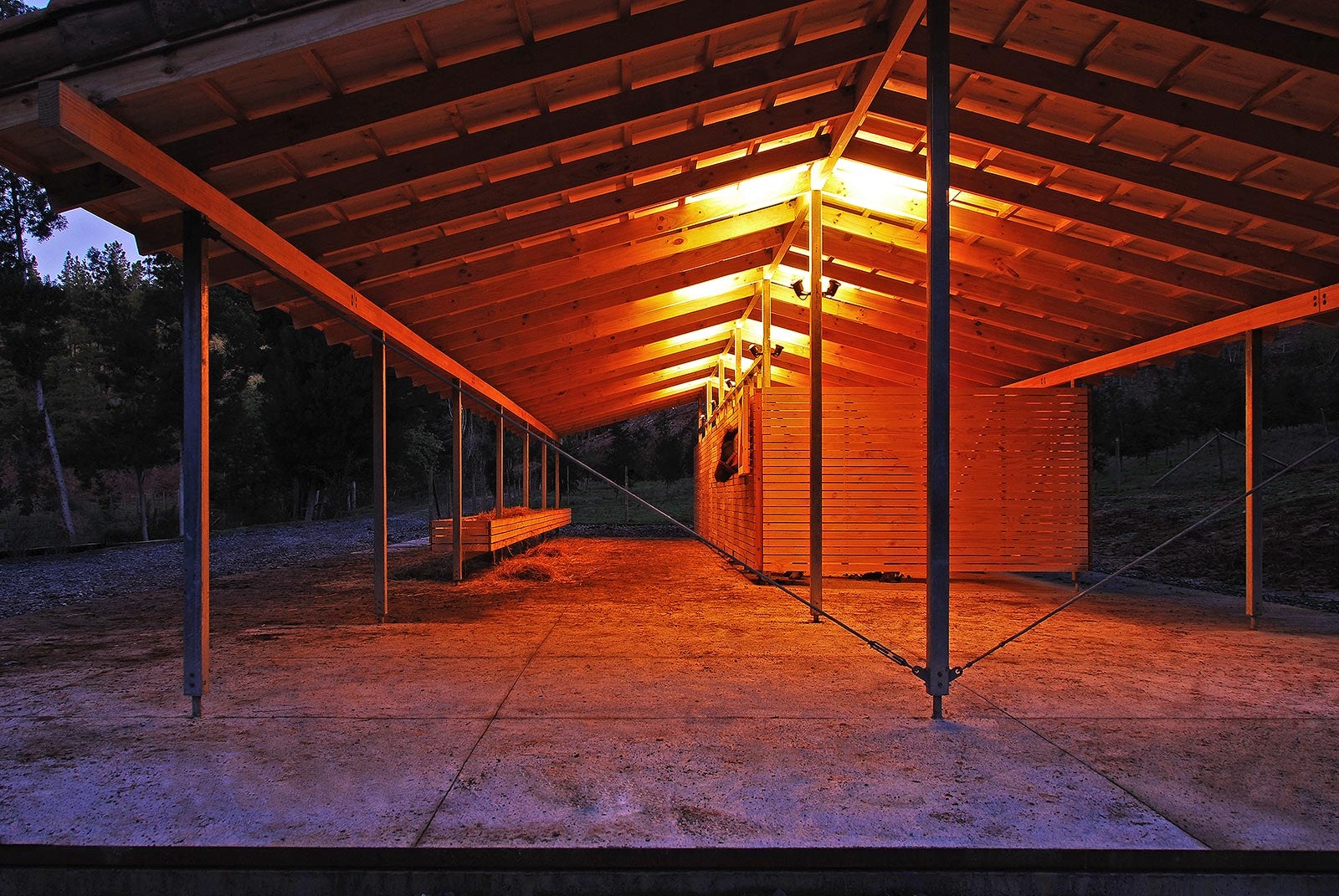

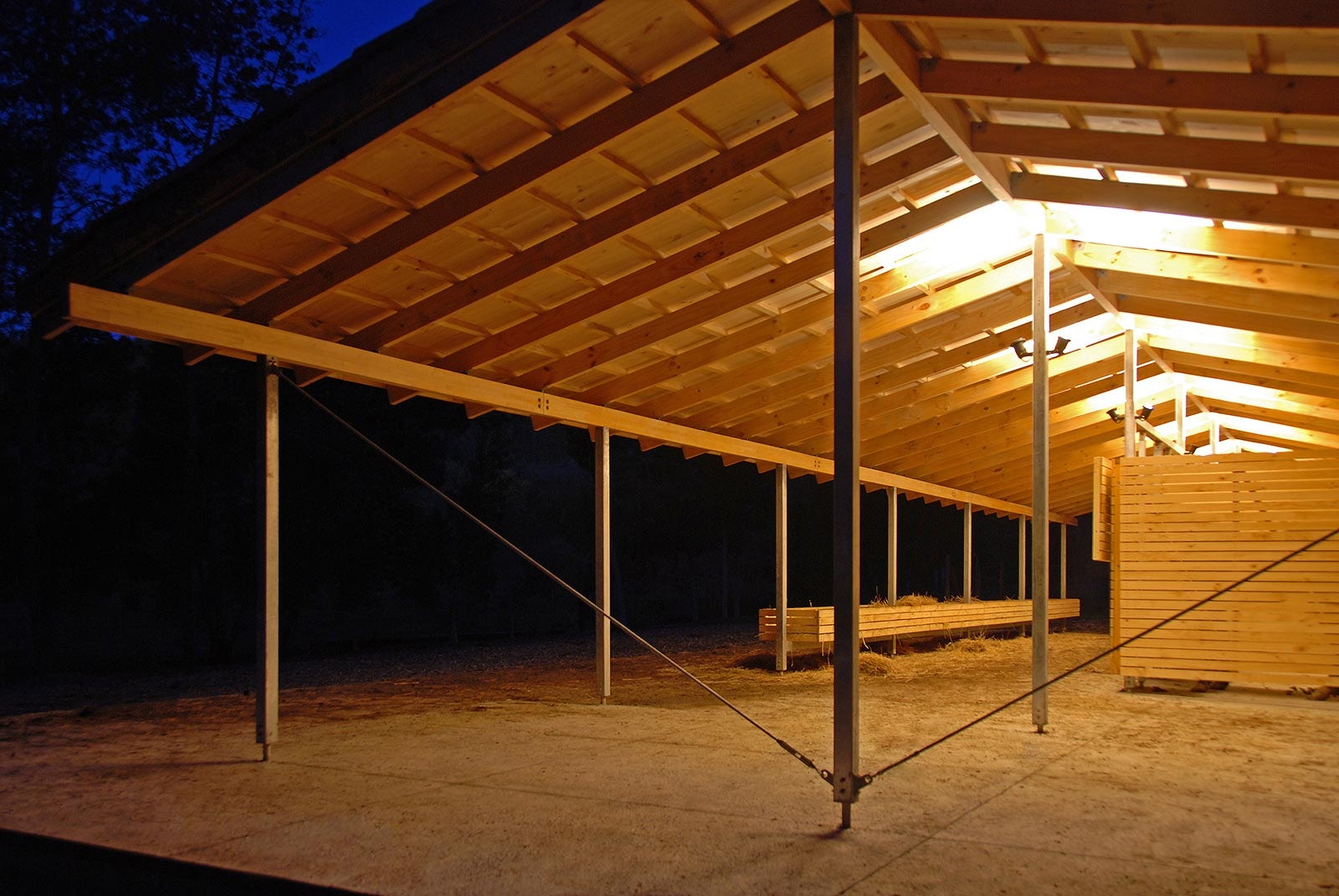

Throughout a grid of 3 x 3 meters is configured a rectangular floor plant of 6 x 18 meters, defined by a structure of steel posts and crossbars that supports a series of wooden rafters and an open gable roof.

© 57studio

© 57studio

© Maurizio Angelini

© Maurizio Angelini

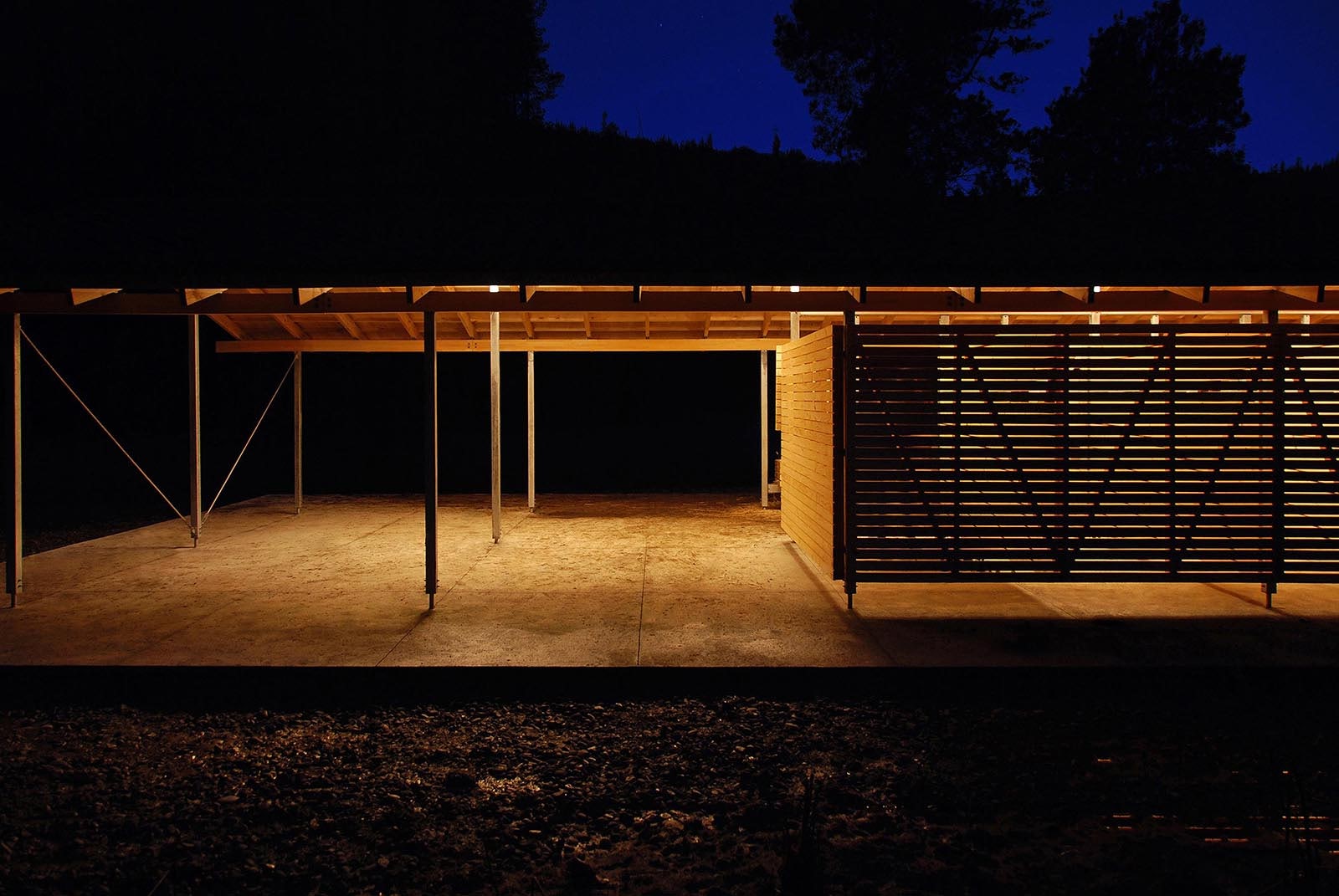

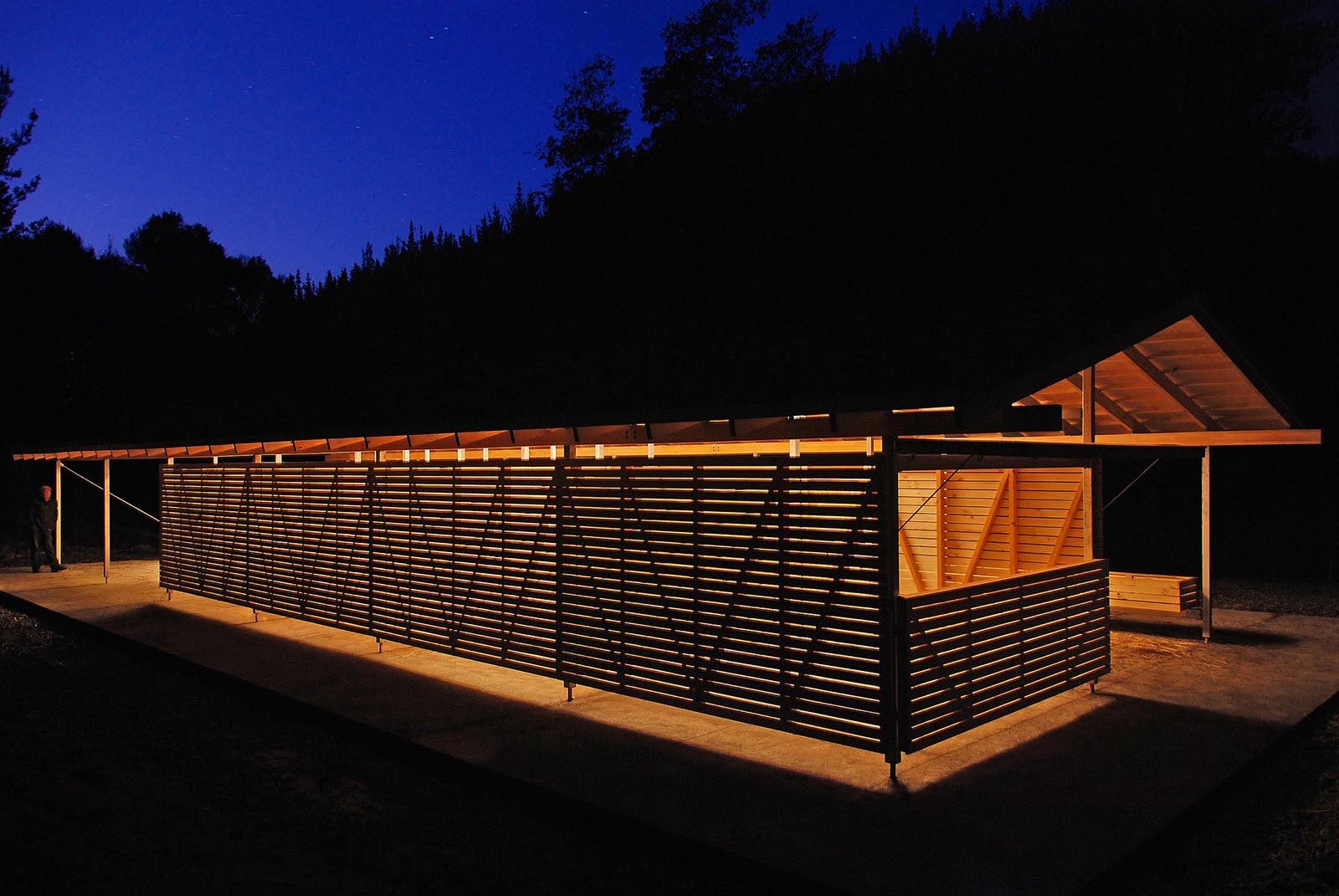

Following the same grid, 4 enclosed modules were intended for the cellars and stables and the remaining under roof space was left for the animal shelter and the feeding trough. One of the cellars needed a special gate, from the side, to charge in straw bales from a vehicle. All the structure settles over concrete bases and grounds on a floor slab with slopes for the water runoff.

© Maurizio Angelini

© Maurizio Angelini

© Maurizio Angelini

© Maurizio Angelini

With the exception of the concrete base, all the other elements were designed for dry assembly and non-welding installation..

© Maurizio Angelini

© Maurizio Angelini

© Maurizio Angelini

© Maurizio Angelini
