The project is located in Qingyuan Community, Supo Block, Chengdu, adjacent to Supo Park, located in the green belt of Qingyuan Park, surrounded by many schools. The names of “Supo” in Chengdu all come from an ancient bridge — Supo Bridge. The architectural image of the project originates from the disappeared Supo Bridge.
We take the “corridor” of Supo Bridge as the architectural image, and try to redraw the shape of Supo Bridge with modern architectural language, bringing the memory of the bridge back.
Following the design principle of economy, environmental protection, the transformation of functions before and after the project of conversion is not allowed to changes of space structure and high construction price, so our team think the spatial organization carefully at the beginning of the design stage.
“Corridor Bridge” Concept satisfying the function requirements of art and sales exhibitions at the same time comes out, not only reasonable planning for current and future circulations, but also combining with the image architectural theory we insist. The architectural image of “Corridor Bridge” makes this building less of an “architecture” visually as well.

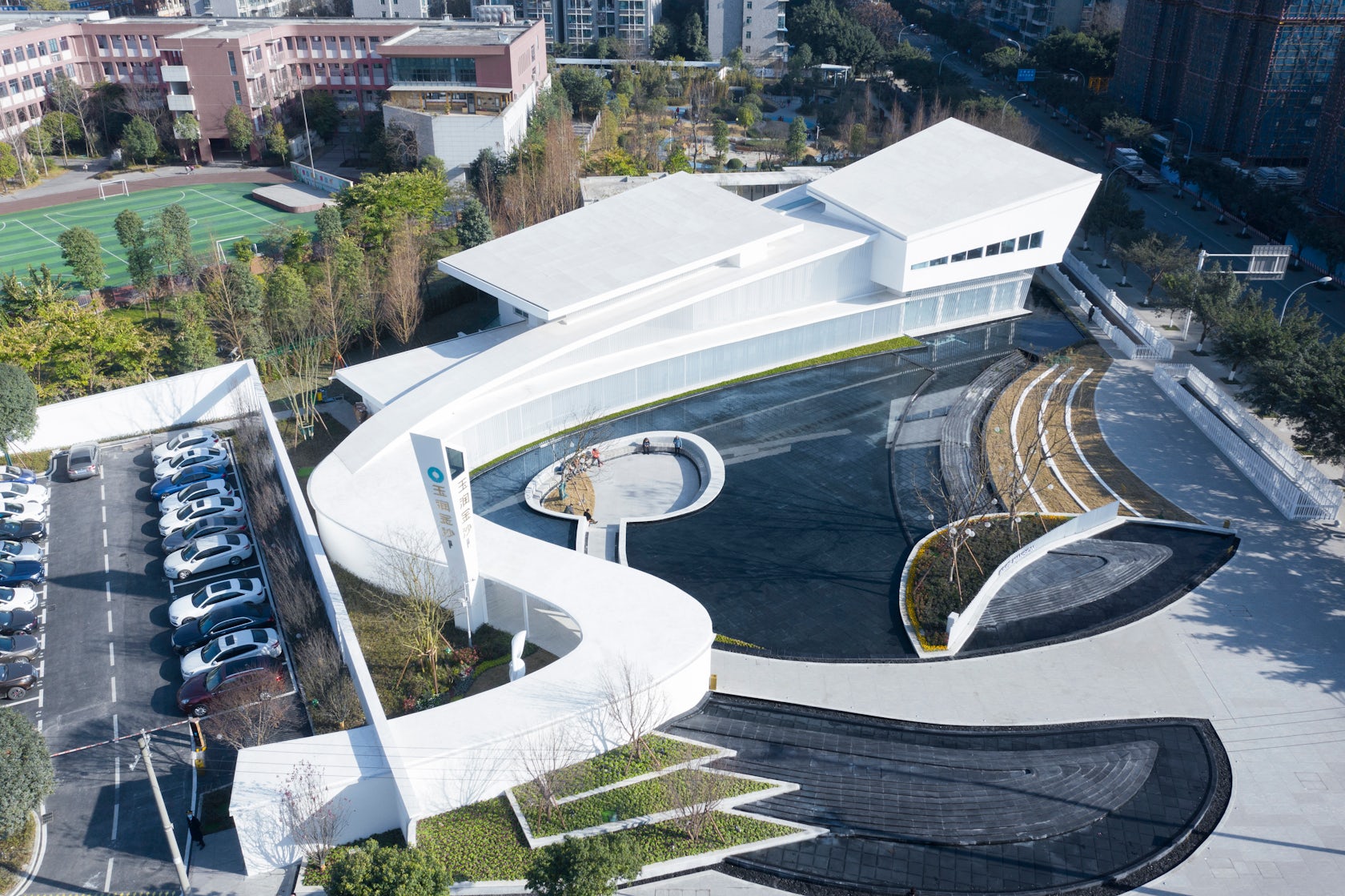

It is more like the Jade Belt crossing over the site, connecting the green spaces of the block in an interesting way.The whole building is like several layers of corridors stacked together, the image of “Corridor Bridge” arises spontaneously. The image of “covered bridge” is also continued in the facade and interior space of the building adjacent to the park on the east side.

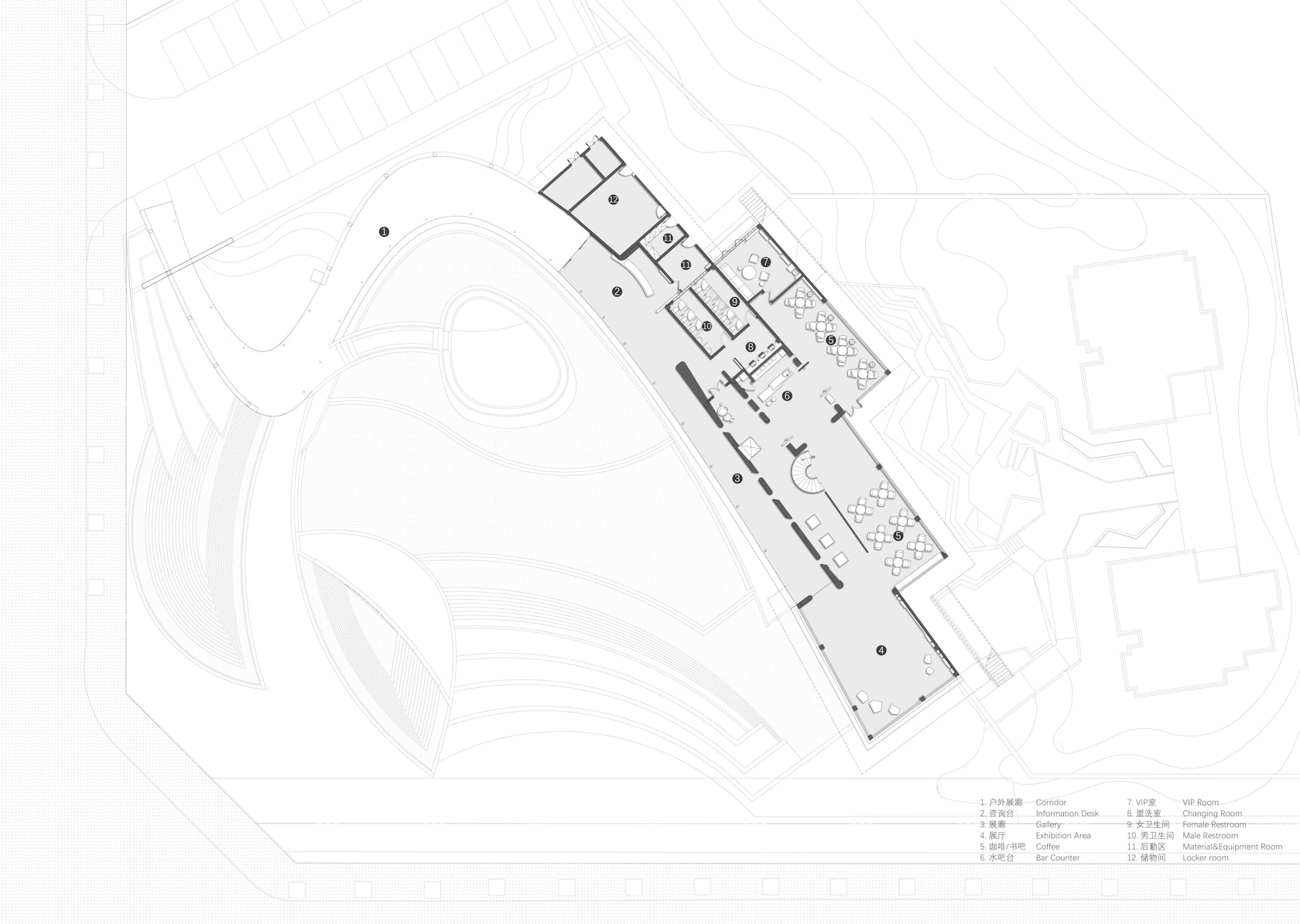

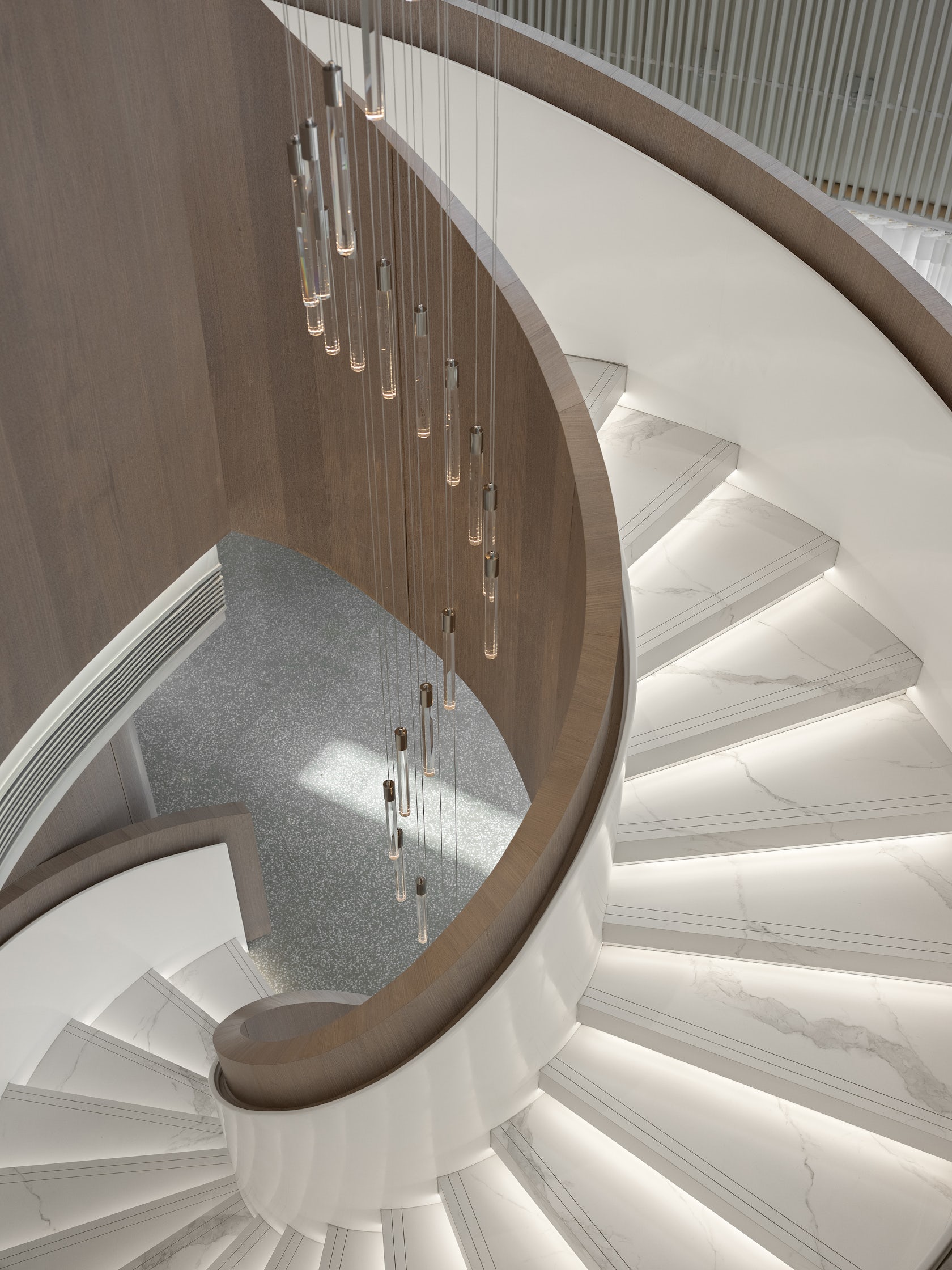

The building has a total of two floors. In addition to the interlocking stairs and elevators in the interior, two other staircases are placed outside on the east side, forming an aerial corridor bridge as well. The four large transparent and open glazing also echo the “four holes and three piers” of the Supo Bridge in history to a certain extent.
Distributed multiple staircases not only solve the evacuation issue of each space, but also provide necessary access and different access methods for each function division and operation management of the building.
The interior “Corridor Bridge” forms a certain height difference on the second floor according to the height changes of different spaces on the first floor.
We use the suspended ramp to solve the height difference and provide some rhythmic pleasure for the building without affecting the accessibility.

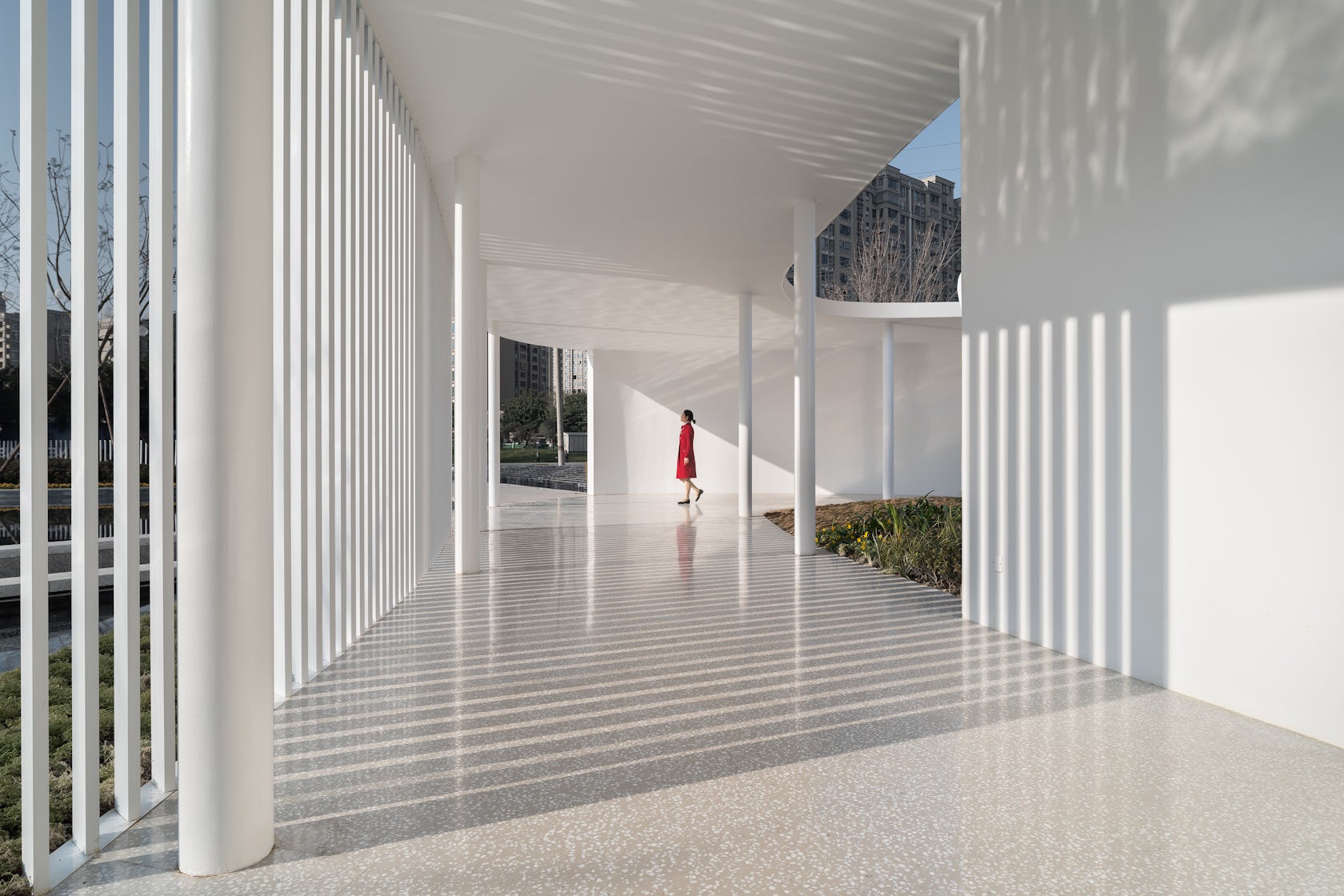

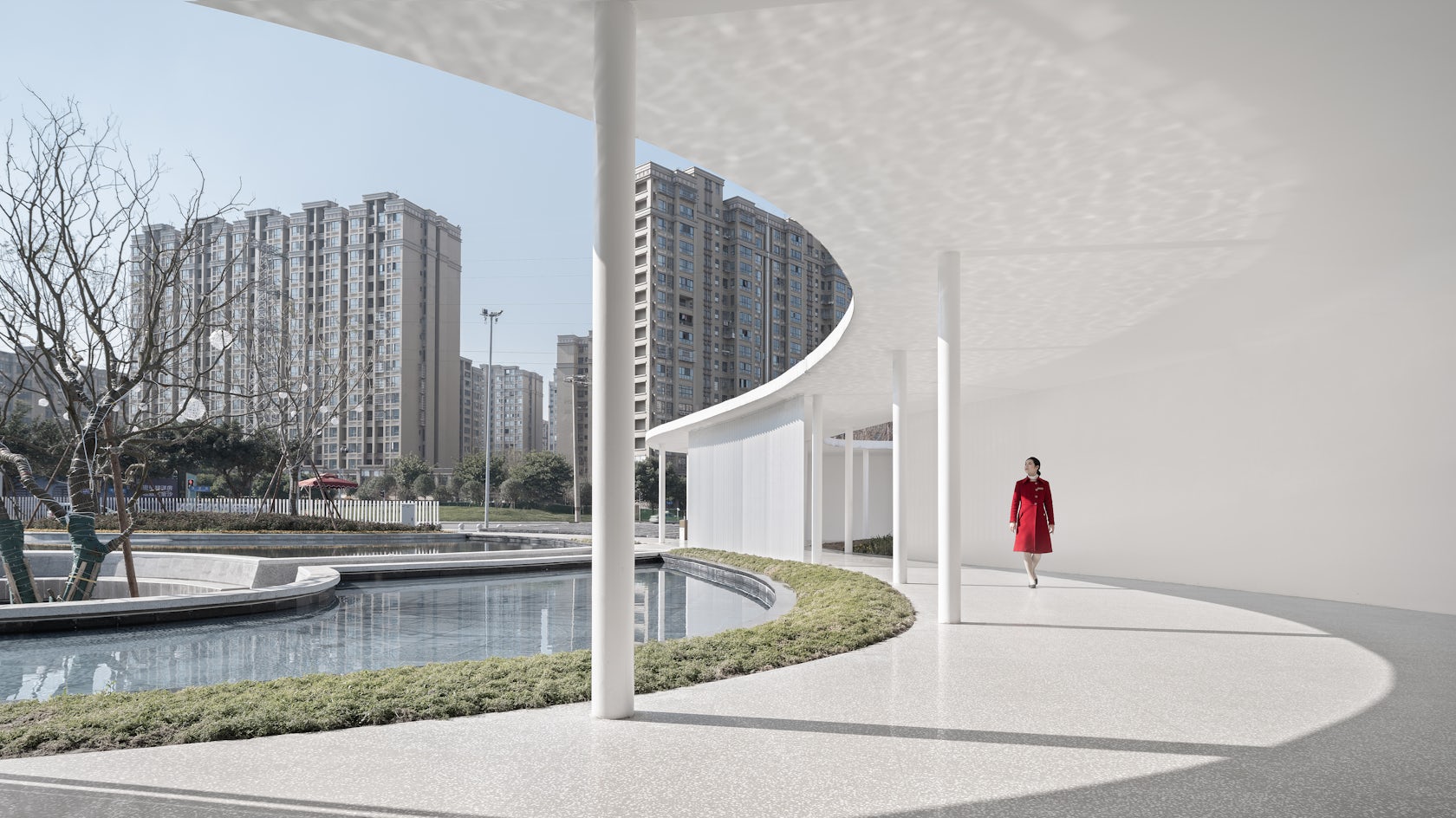

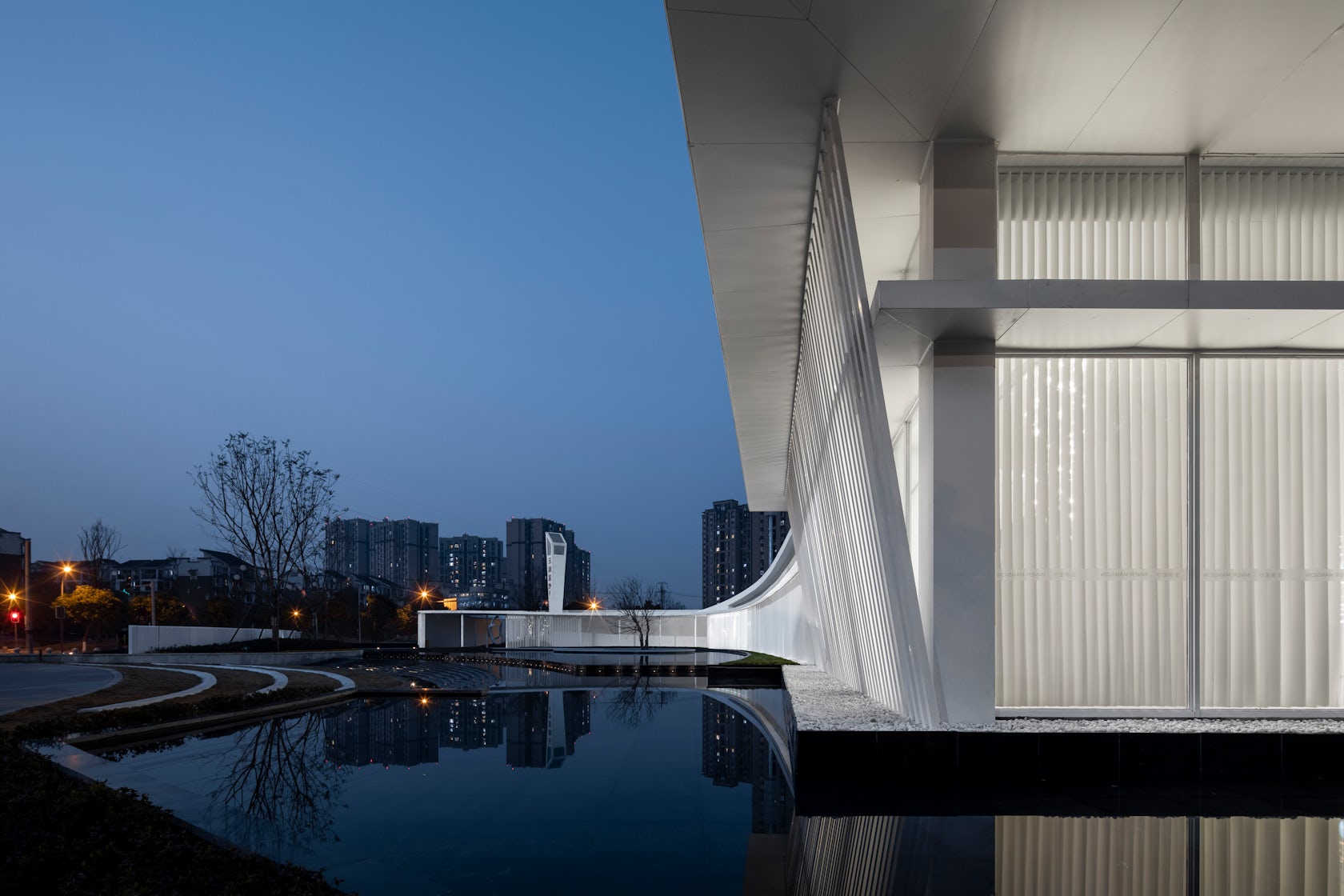

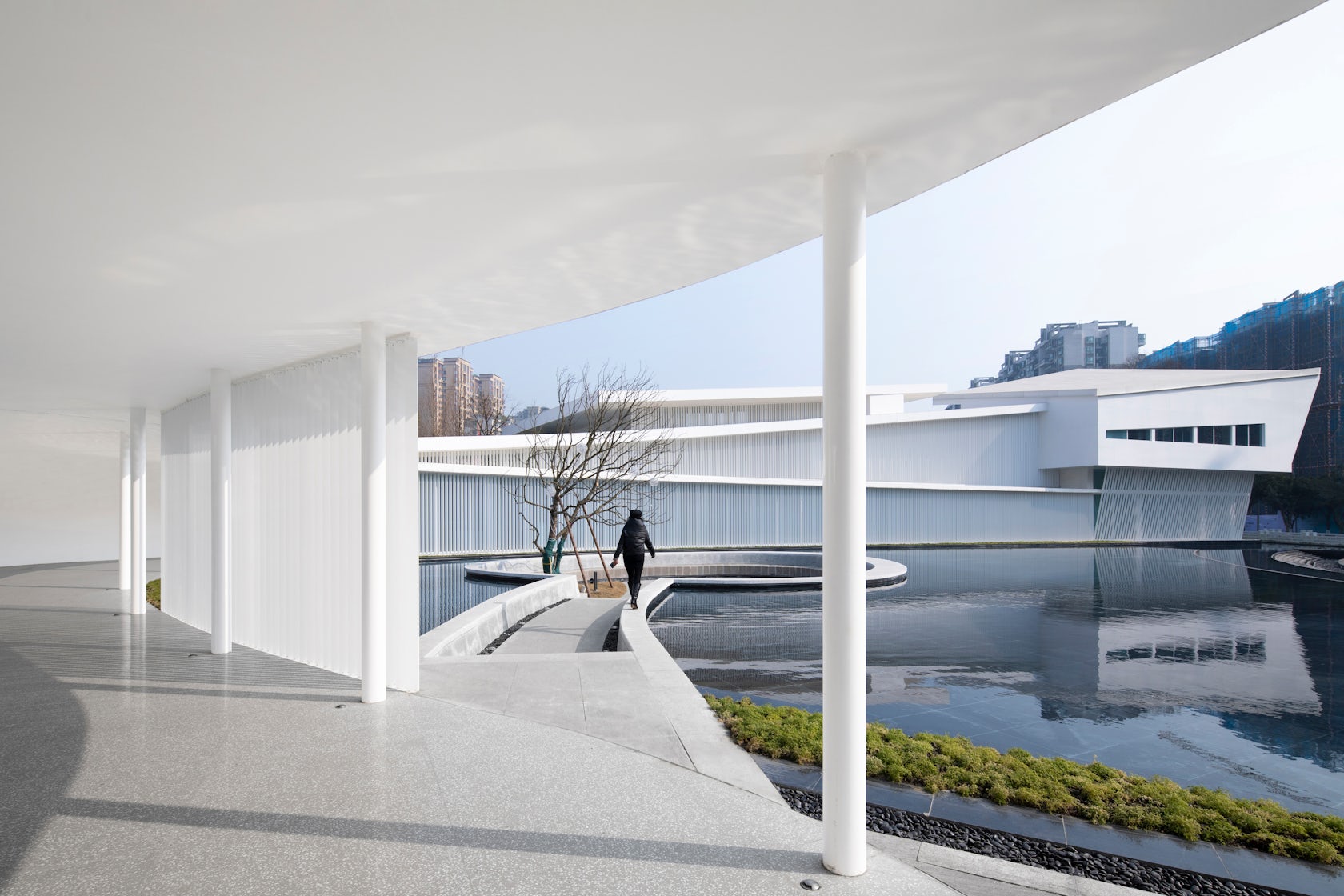

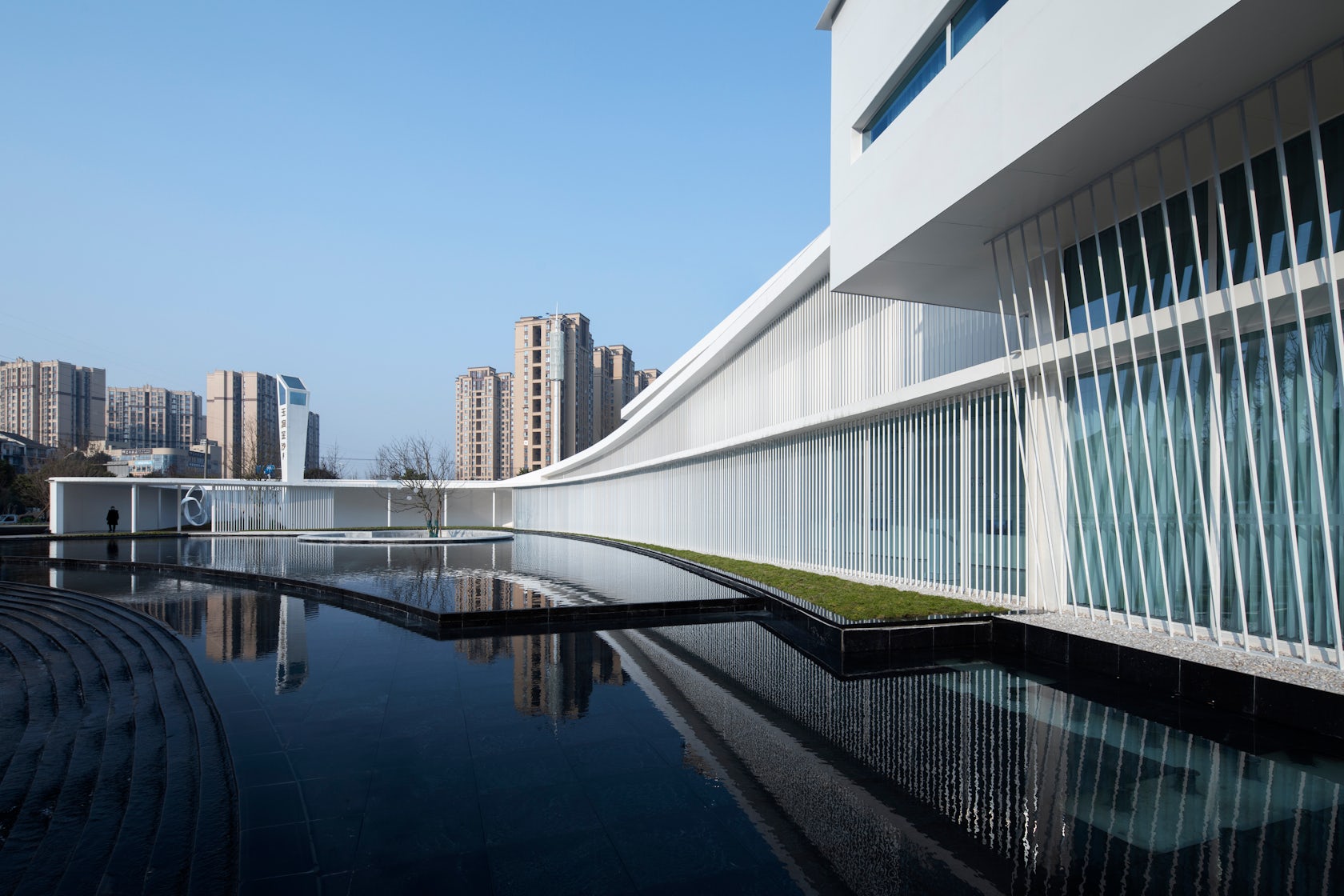

The 50-meter semi-outdoor corridor at the entrance and the white louvers at the main interface facing roads on the west side strengthen the integrity of the building while weakening the sense of mass.

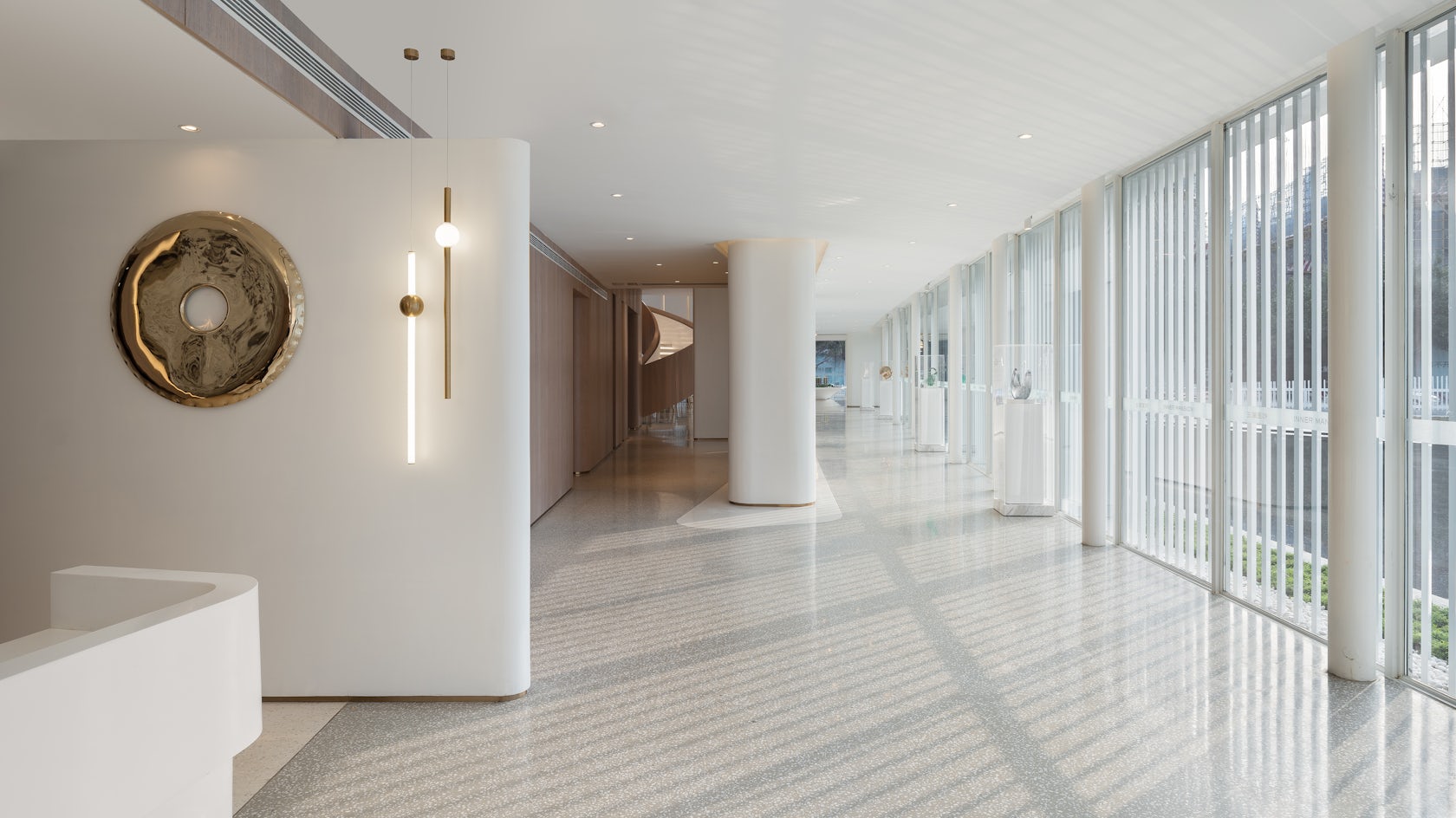

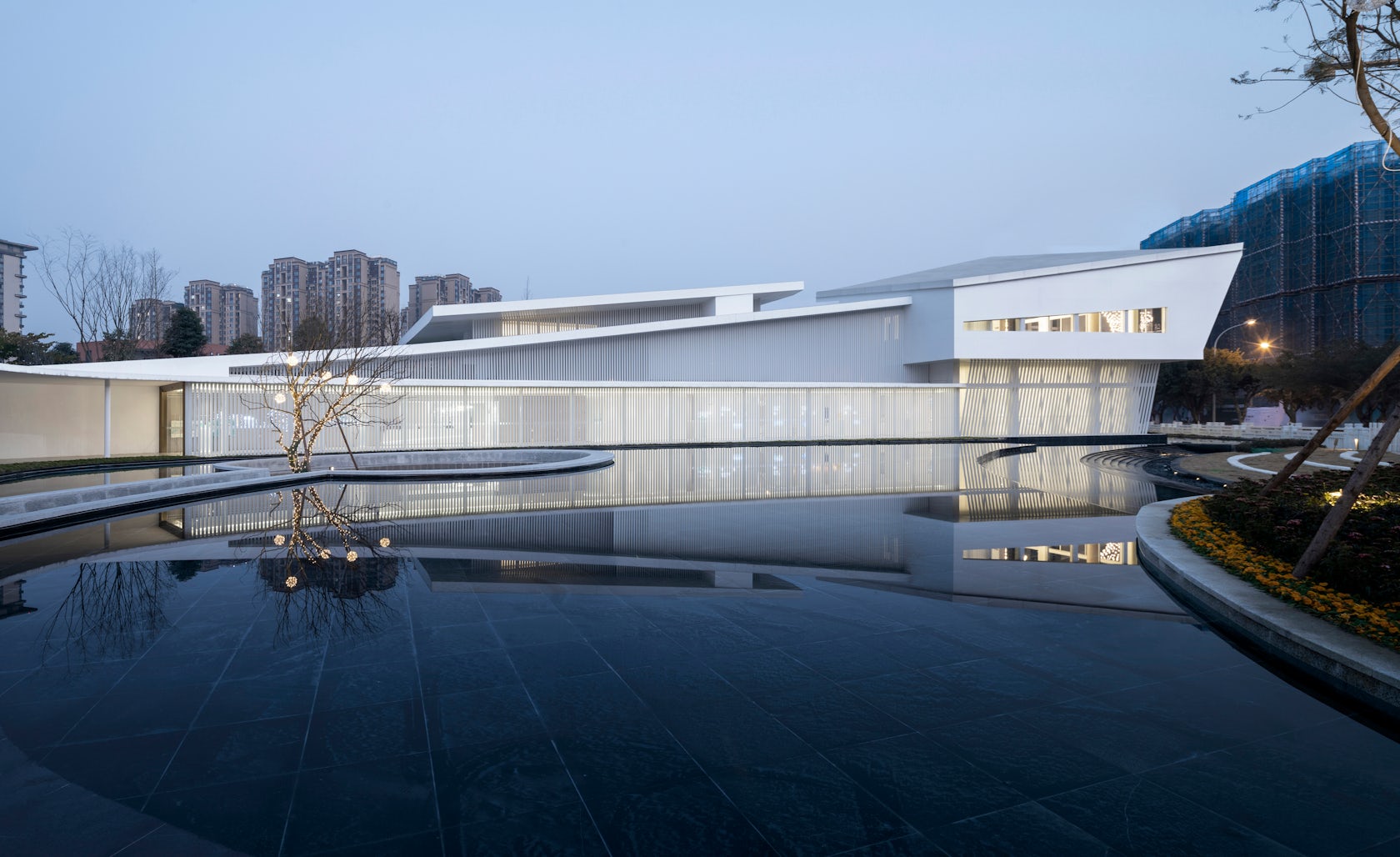

The soft sunlight through the louvers and the sparkling light reflected from the water interweave into an elegant picture scroll. Light and shadow are also exhibits, but also the flowing spirit crossing through the space. A 150-meter long exhibition corridor is formed through the combination of indoor and outdoor, which can carry a variety of small art exhibition activities and provide a place for the surrounding residents to relax.

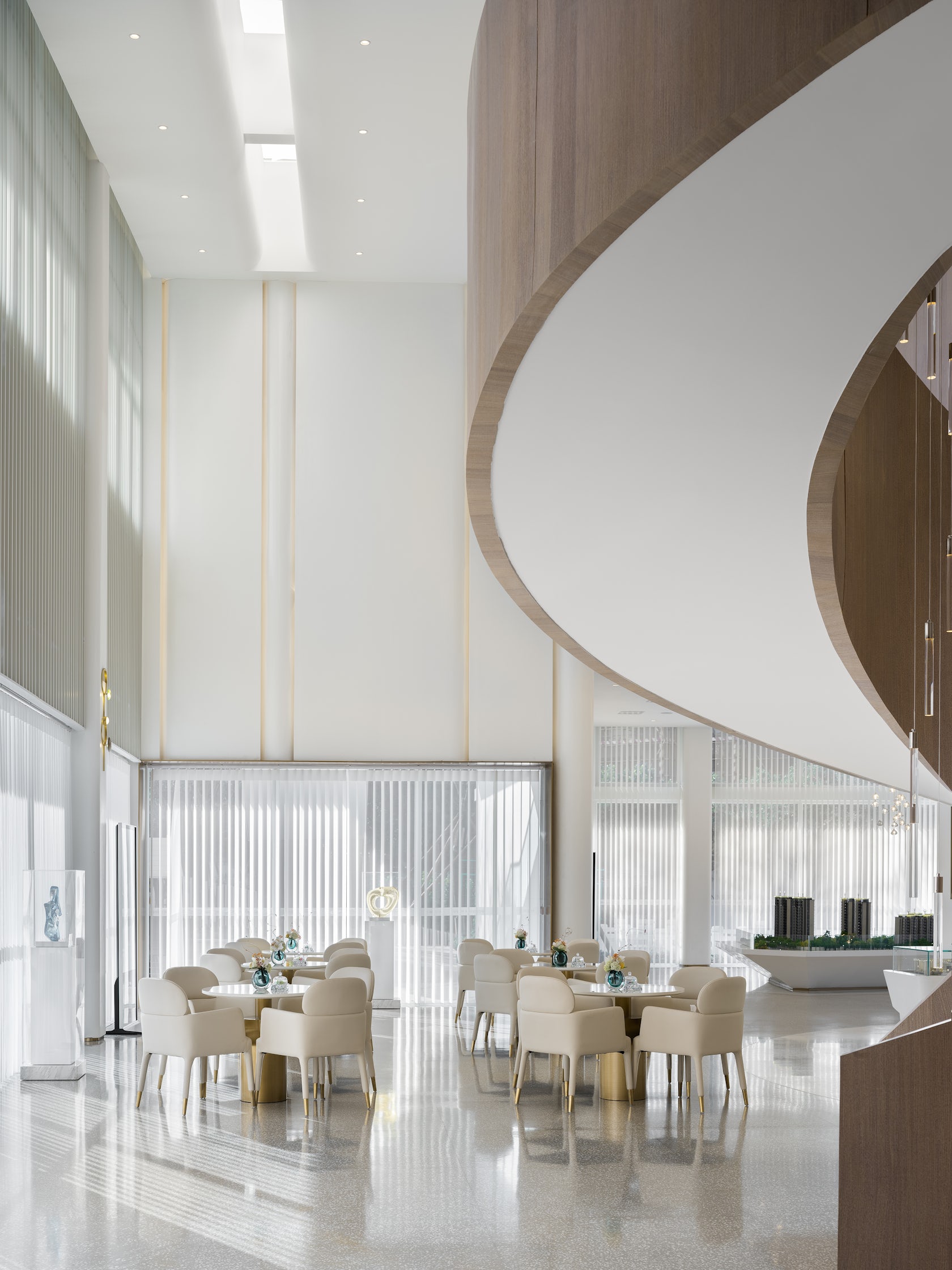

Full floor-to-ceiling glazing on the east side of the space adjacent to the park green space introduce nature into the interior. A certain artistic commercial space can be formed by combining book bar, cafe and tearoom, and “self-hematopoietic” can supply the daily operation of art exhibition space in order to solve the commercial problems of most public buildings at present..
