Car Park RAI Amsterdam // Benthem Crouwel Architects

Amsterdam, Netherlands

Architizer Editors Architizer Editors

Text description provided by the architects.

RAI Amsterdam Exhibition and Convention Centre has a new, multifunctional car park. The building is 30 metres high and its eight floors offer parking space for about 1.000 cars. The car park is situated on the ring road A10 and the Zuidas, Amsterdam’s business district. What makes the building remarkable is the fact that the first floor is not just for parking cars, but can also be used as a flexible space for conventions and exhibitions.

© Benthem Crouwel Architects

© Benthem Crouwel Architects

When the RAI does not need the car park, the building can function as a public parking space. Benthem Crouwel Architects has been supervisor of the entire RAI complex since 1989. After conference buildings Amtrium and Elicium, this car park is the third building Benthem Crouwel Architects has designed for the RAI.

© Benthem Crouwel Architects

© Benthem Crouwel Architects

HelixesThe building is characterized by a simple, rectangular shape. On the south side of the building, two remarkable helix-shaped towers spiral upwards: one gives access to the car park moving up, the other one is used by cars leaving the building going down. By separating the traffic flows, parking at this building is fast and efficient, which is very important to Amsterdam RAI.

© Benthem Crouwel Architects

© Benthem Crouwel Architects

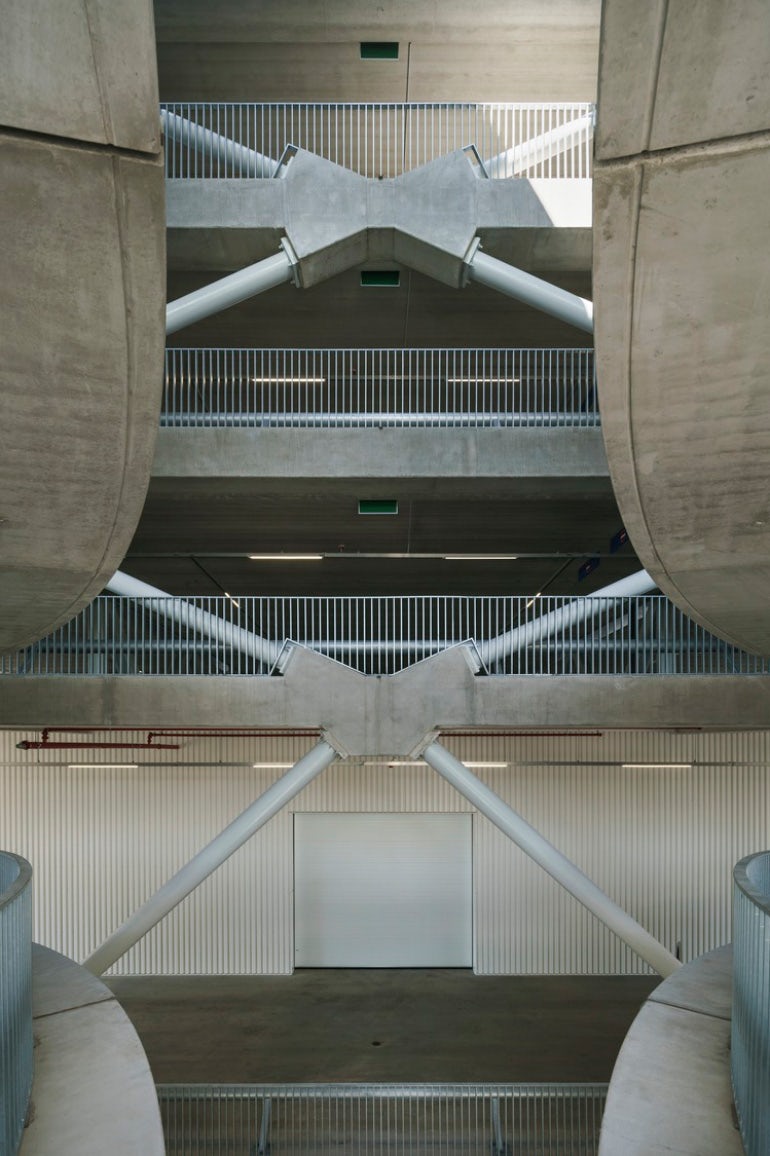

The towers consist of prefab concrete elements. Placed on top of each other, they form the driveways to enter or leave the parking floors. The iconic concrete helix-shaped towers are highly visible from the ring road A10, even more so at night when blue LED lights emphasize the elegant structures.Flexible spaceThe car park is a stand-alone parking facility, and also a multifunctional building.

© Benthem Crouwel Architects

© Benthem Crouwel Architects

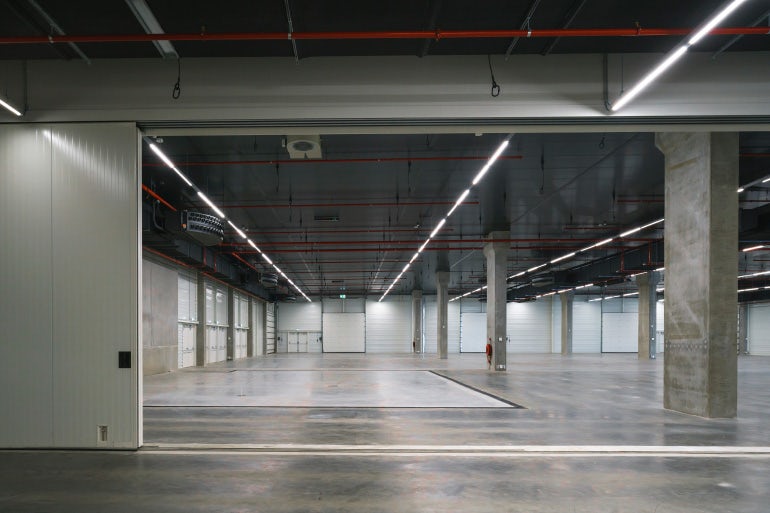

The first floor is twice as high (7.2 meters) as the other parking levels, creating a large and spacious hall that can be used as an extra space for conventions and exhibitions. The hall measures about 2.800 m2 and has as few columns as possible, therefore it can be arranged in many different ways.

© Benthem Crouwel Architects

© Benthem Crouwel Architects

The column structure stands on a grid of 7.5 meters. The building consists of three naves with a span of fifteen meters. The extension hall can be used independently for various events, but can also be connected – using sliding doors – to the main exhibition halls of the RAI.

© Benthem Crouwel Architects

© Benthem Crouwel Architects

The uppermost parking level, the roof of the building, can also be exploited for all kinds of activities. RAI lamellaeThe parking floors are framed by vertical lamellae, used in many of the RAI buildings – thus pointing out the connection between the various buildings of the complex. The aluminium lamellae of the car park are spaced and therefore give the building an appearance that is both transparent and private.

© Benthem Crouwel Architects

© Benthem Crouwel Architects

The RAI wanted a car park without mechanical ventilation; the spacing allows air to flow through. Because of the orientation of the lamellae, they also protect against rain. Twenty years as supervising architectOriginally founded in 1893 as a society for bicycle manufacturers, RAI Amsterdam has grown into one of the largest and busiest convention and exhibition centres of the world.

© Benthem Crouwel Architects

© Benthem Crouwel Architects

Since RAI opened at its current location, in 1961, over a hundred million people visited the complex. Alexander Bodon was the supervising architect of the RAI from 1961 to 1989. As of 1989, Benthem Crouwel Architects is proud to have this honourable task. The past twenty years, Benthem Crouwel Architects has designed (among other projects) both the buildings Amtrium and Elicium for the RAI.

© Benthem Crouwel Architects

© Benthem Crouwel Architects

The multifunctional car park is the latest addition to the RAI-complex. FACTSARCHITECTBenthem Crouwel ArchitectsGeneraal Vetterstraat 611059 BT AmsterdamCLIENTRAI AmsterdamLOCATIONZuidas Amsterdam, aan de ring A10GROSS FLOOR AREABruto floor area: 28265 m2 (excluding helixes)Length: 73.45 m (exclusief wokkels)Width: 47.55 mHeight: 31.629 mSTART DESIGN2014START CONSTRUCTION2015OPENINGAugust 2016PROJECT TEAMMels Crouwel, Heymen Westerveld, Noortje ter Heege, Willem Jan van der Gugten, Pepijn van der Kroft, Volker Krenz, Jerome LatteuxDESIGN & BUILD CONSTRUCTORAan de Stegge TwelloPHOTOGRAPHERJannes Linders.

© Benthem Crouwel Architects

© Benthem Crouwel Architects

Car Park RAI Amsterdam Gallery
