Bow River Pedestrian Bridge // StructureCraft

Banff, Canada

Architizer Editors Architizer Editors
Want to see your project featured like this?

Text description provided by the architects.

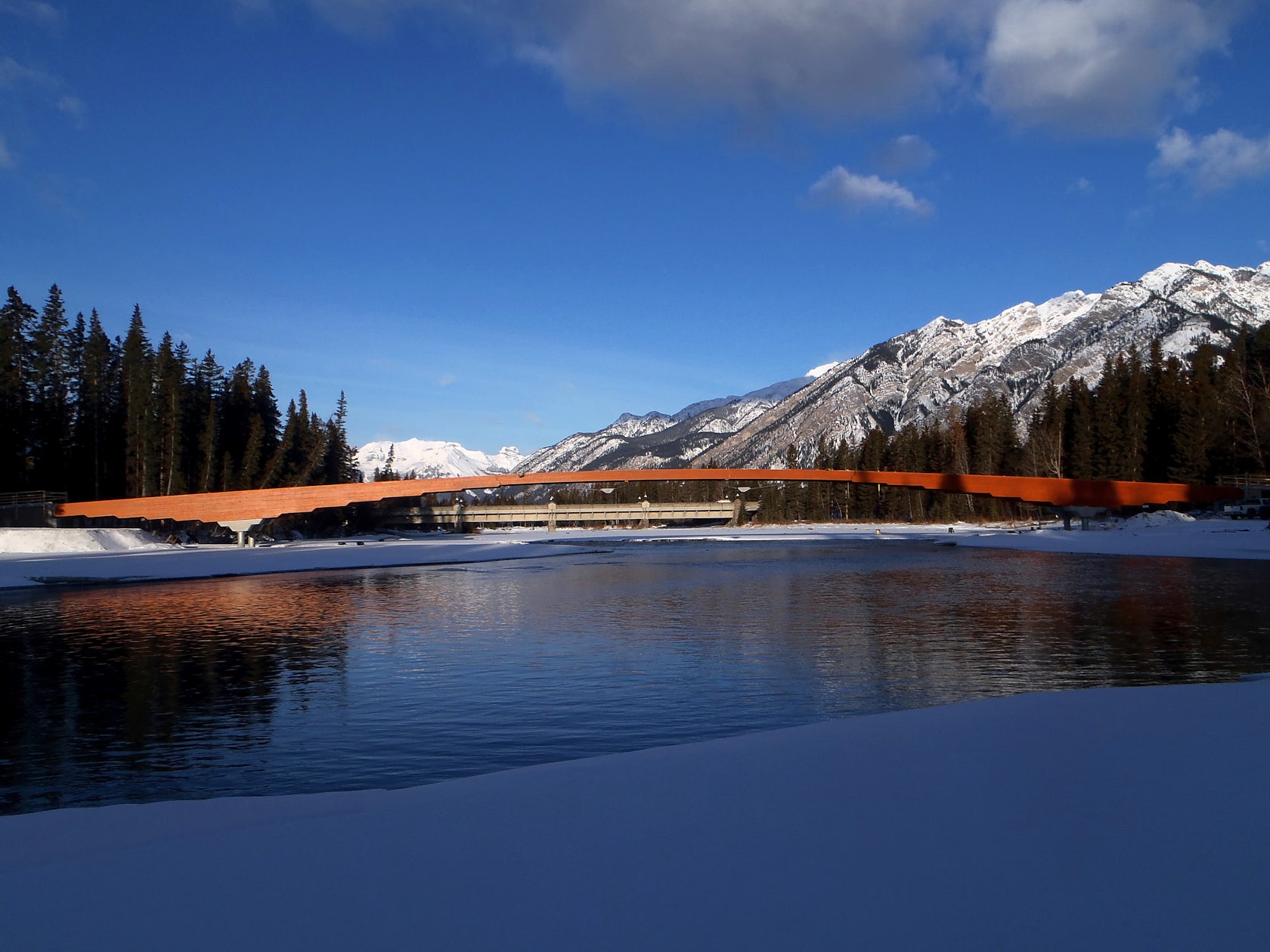

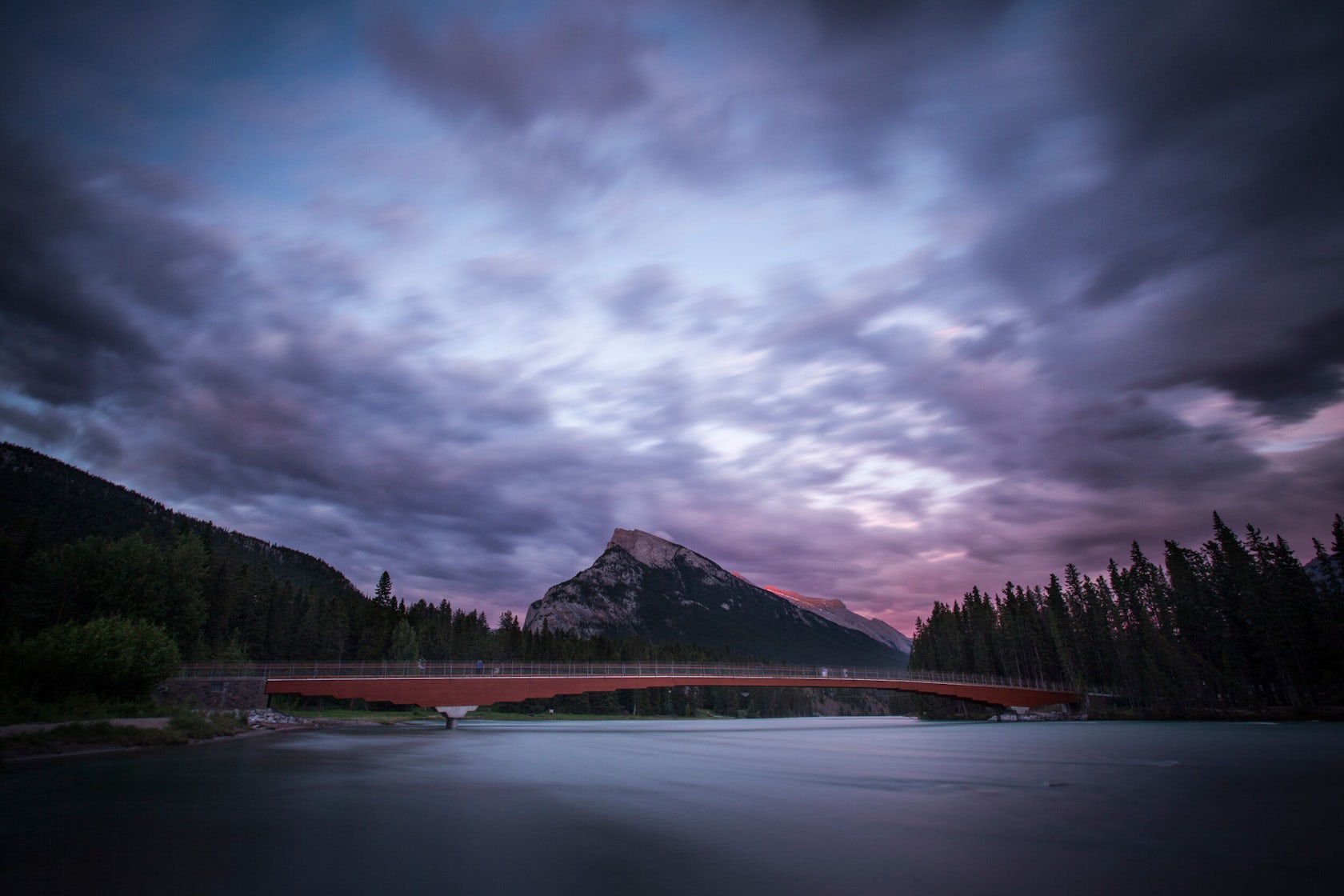

Set over the Bow River in the town of Banff — Canada’s first national park — this slender 370-foot long timber bridge serves pedestrian traffic and provides a new sanitary crossing replacement.

© Paul Zizka

© Paul Zizka

© StructureCraft

© StructureCraft

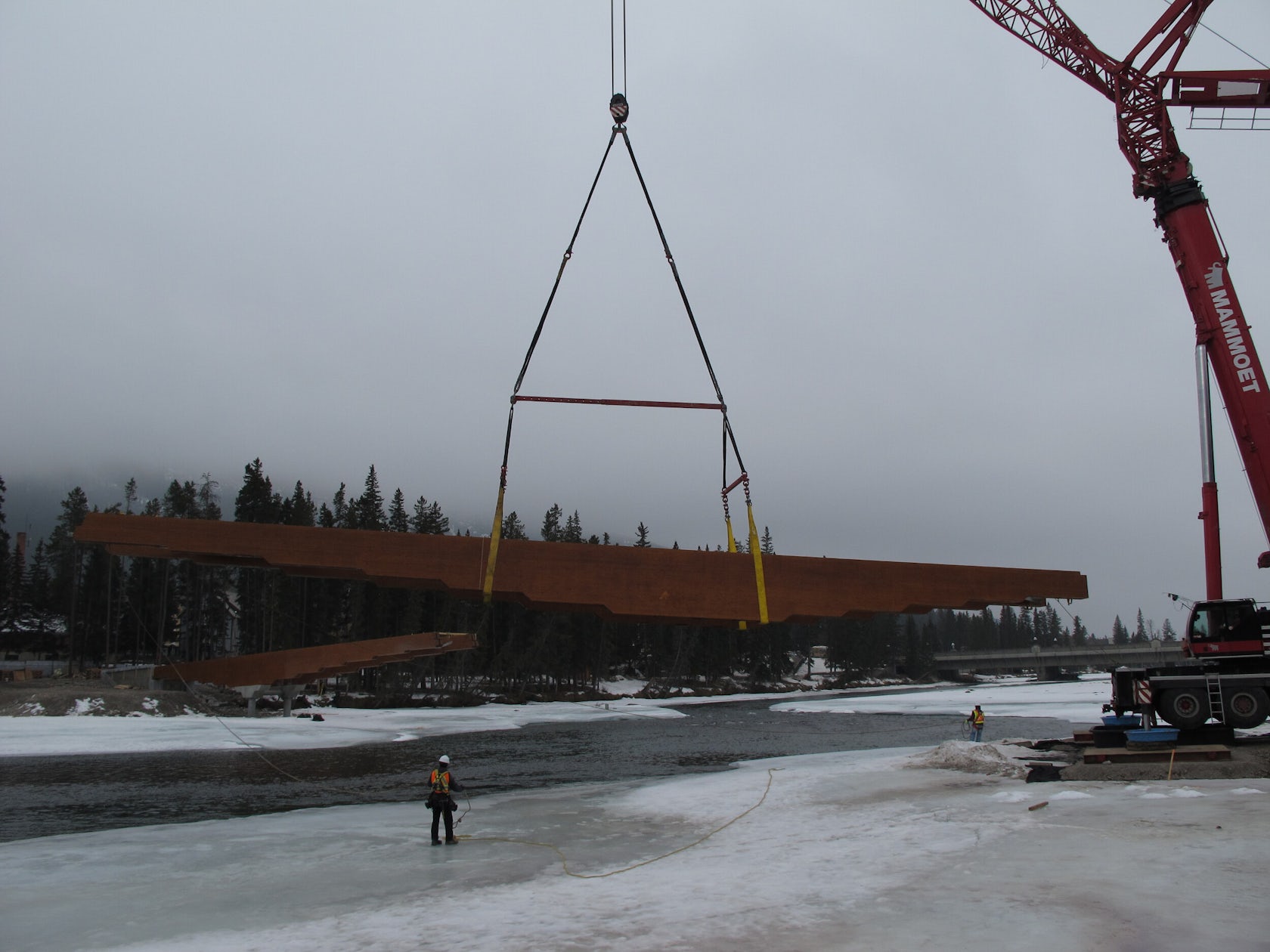

The 270-foot clear span – perhaps the longest of its kind for a timber bridge – is formed from two 130-foot tapered haunch girders, cantilevering from either side to support a central 111-foot suspended span.

© Paul Zizka

© Paul Zizka

© StructureCraft

© StructureCraft

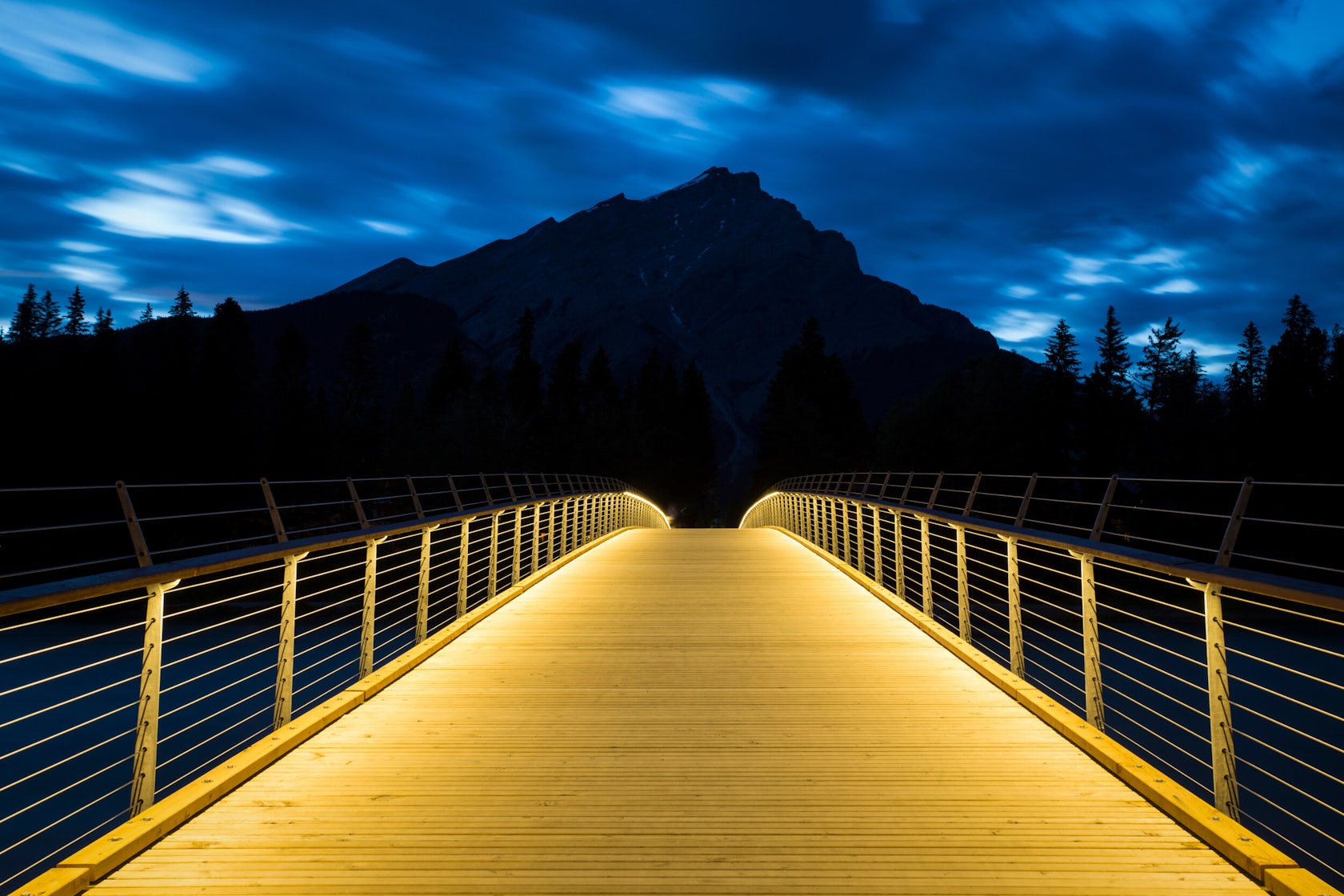

A replaceable modular timber deck sits atop twinned Glulam beams which grow to six feet deep.

© Paul Zizka

© Paul Zizka

© StructureCraft

© StructureCraft

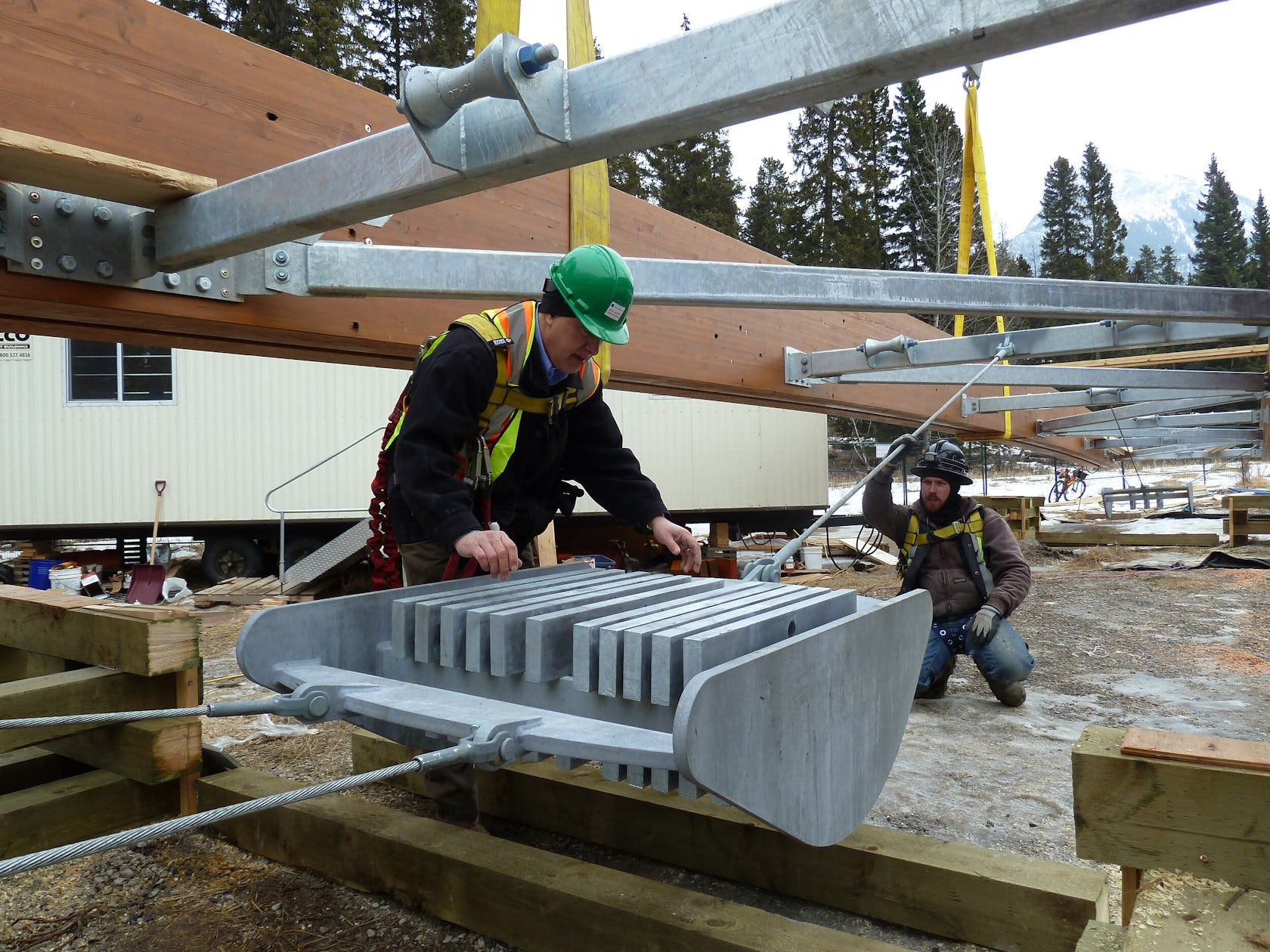

A custom built tuned mass damping system was implemented to help achieve the slender 13-foot wide deck section and to deal with vibrations from pedestrian loading..
